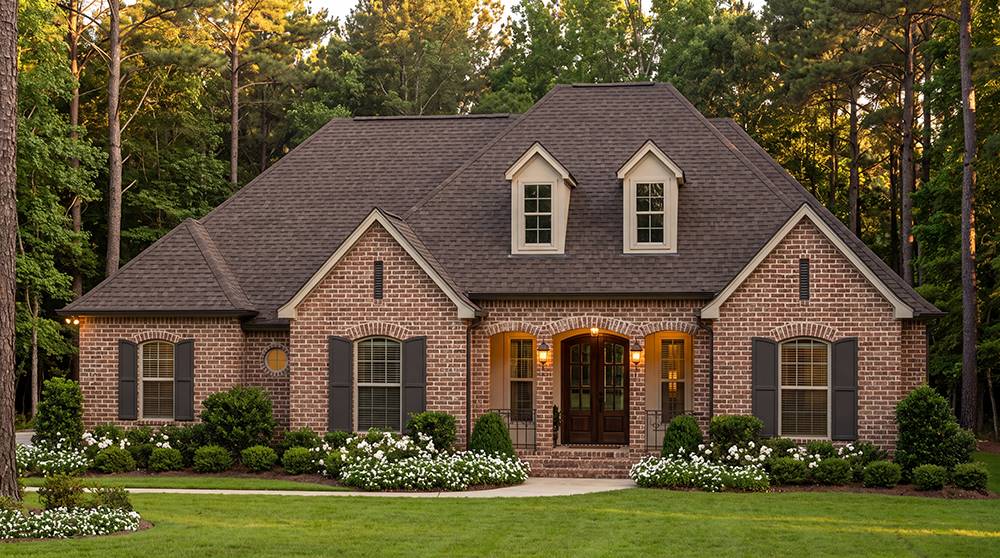

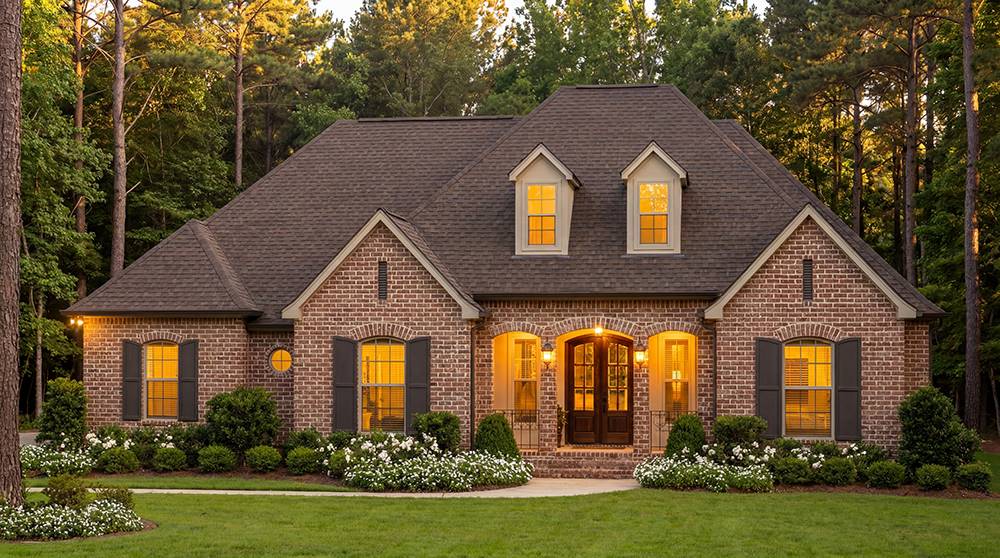

Front Rendering Rear Rendering Great Room Great Room Kitchen Primary Bedroom First Floor Plan Second Floor Plan
See all 8 photos and rear view
Photographs may reflect modified homes
© copyright by designer

Plan: 0707 Gracie

Plan Specification
Total Square Footage: 2,280
Main Level: 2,280
Bonus: 1,166
Bedrooms: 3
Baths: 2 Half: 1
Garages: 2
Width/Depth: 62 ft / 77 ft
Foundation: Basement, Crawl Space, Slab
View typical construction drawing >
© copyright by designer
First Floor Plan:
First Floor Plan
© copyright by designer
Second Floor Plan:
Second Floor Plan
Similar plans: 0416, 0418, 0506, 0413
Add to Favorites
Purchase Plans
House Plan Pricing
$1,260.00
$1,455.00
$1,630.00
$2,215.00
Foundation Options
$0.00
$350.00
$350.00
Additional Plan Options
$255.00
Plan Details
General House Information
1
Number of Stories:
62' 11"
Width:
77' 1"
Depth:
Single
Dwelling Number:
2nd Floor
Bonus Access:
Exterior Style
Old House Classics
French Country
Southern
Traditional
Facade
Brick
Number of Rooms
3
Bedrooms:
2
Full Baths:
1
Half Baths:
Finished Square Footage
2,280 Sq. Ft.
Main Level:
2,280 Sq. Ft.
Total:
Unfinished Square Footage
GARAGE
Rear
Garage Location:
2
Garage Size:
Foundation
Basement
Crawl Space
Slab
House And Ceiling Heights
10
First Floor Ceiling:
30' 0"
Maximum House Height:
Framing Information
Stick
Roof Framing:
2x4
Exterior Wall Framing:
Roof Pitch
13/12
Primary:
5/12
Secondary:
Roof Load
30
Live:
15
Dead:
Insulation (R)
Per IRC Climate Zones
Number of Rooms
3
Bedrooms:
2
Full Baths:
1
Half Baths:
Key Features
• Attached
• Basement
• Country Kitchen
• Covered Front Porch
• Covered Rear Porch
• Crawlspace
• Dining Room
• Family Room
• Fireplace
• Front Porch
• Great Room
• Home Office
• Laundry 1st Fl
• Master Bdrm Main Floor
• Mud Room
• Nook / Breakfast Area
• Open Floor Plan
• Peninsula / Eating Bar
• Rear Porch
• Separate Tub and Shower
• Side-entry
• Sitting Area
• Slab
• Split Bedrooms
• Suited for corner lot
• Suited for view lot
• Unfinished Space
• Walk-in Closet
