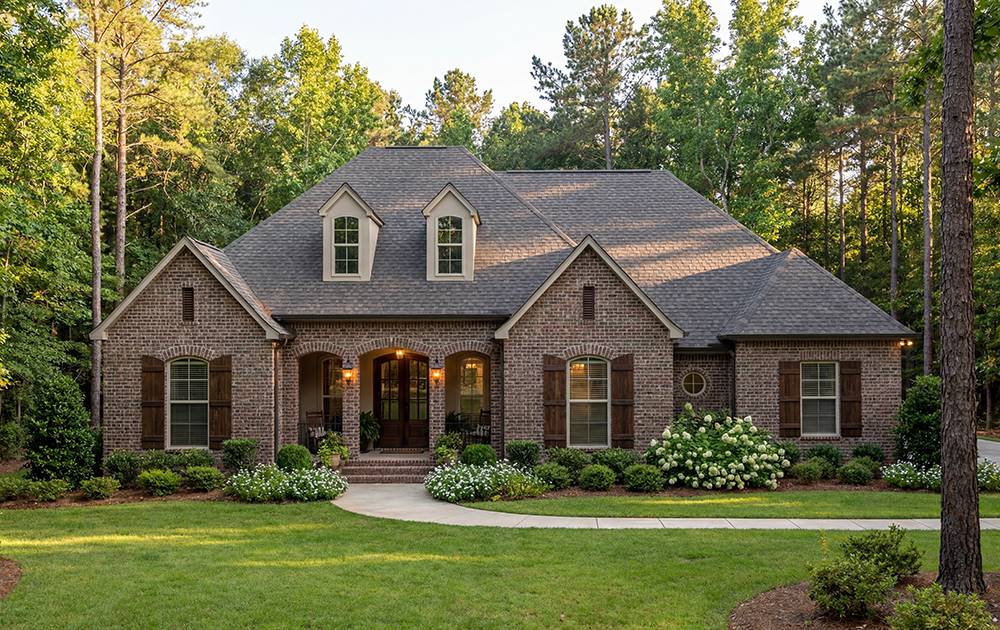

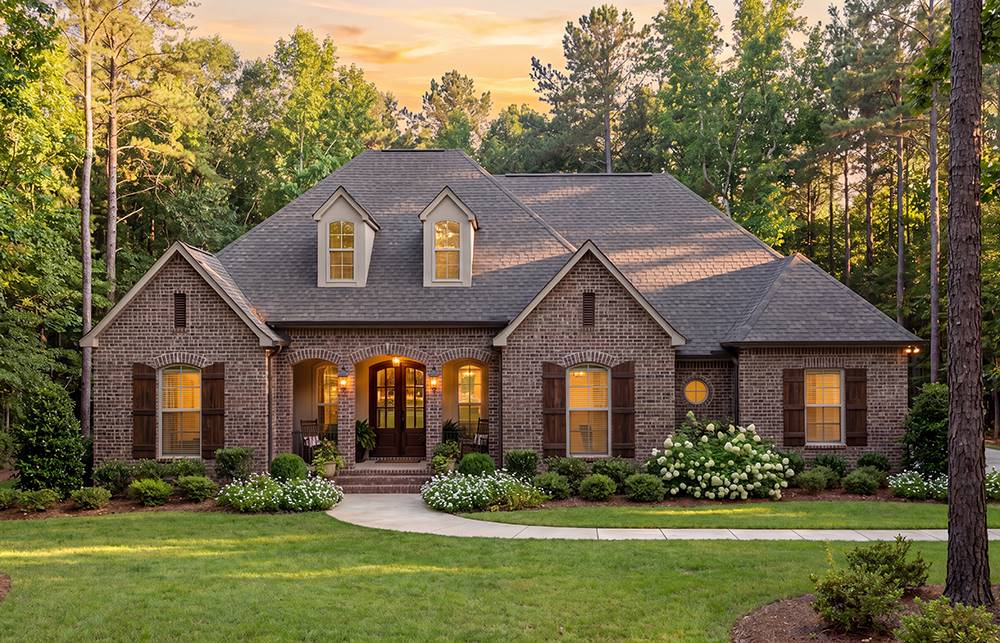

Front Rendering Rear Rendering First Floor Plan Second Floor Plan
See all 4 photos and rear view
Photographs may reflect modified homes
© copyright by designer

Plan: 0506 Gracewood

Plan Specification
Total Square Footage: 2,280
Main Level: 2,280
Bonus: 1,166
Bedrooms: 4
Baths: 2 Half: 1
Garages: 2
Width/Depth: 62 ft / 77 ft
Foundation: Basement, Crawl Space, Slab
View typical construction drawing >
© copyright by designer
First Floor Plan:
First Floor Plan
© copyright by designer
Second Floor Plan:
Second Floor Plan
Similar plans: 0416, 9416, 0501, 9415
Add to Favorites
Purchase Plans
House Plan Pricing
$1,260.00
$1,455.00
$1,630.00
$2,215.00
Foundation Options
$0.00
$350.00
$350.00
Additional Plan Options
$255.00
Plan Details
General House Information
1.5
Number of Stories:
62' 11"
Width:
77' 1"
Depth:
Single
Dwelling Number:
2nd Floor
Bonus Access:
Exterior Style
Old House Classics
Southern
Traditional
Facade
Brick
Stucco
Number of Rooms
4
Bedrooms:
2
Full Baths:
1
Half Baths:
Finished Square Footage
2,280 Sq. Ft.
Main Level:
2,280 Sq. Ft.
Total:
Unfinished Square Footage
GARAGE
Rear
Garage Location:
2
Garage Size:
Foundation
Basement
Crawl Space
Slab
House And Ceiling Heights
10 & 9
First Floor Ceiling:
9
Second Floor Ceiling:
30' 0"
Maximum House Height:
Framing Information
Stick
Roof Framing:
2x4
Exterior Wall Framing:
Roof Pitch
12/13
Primary:
12/13
Gable:
12/13
Dormer:
5/12
Porch:
Roof Load
30
Live:
15
Dead:
Insulation (R)
Per IRC Climate Zones
Number of Rooms
4
Bedrooms:
2
Full Baths:
1
Half Baths:
Key Features
• Arches
• Attached
• Basement
• Bonus Room
• Country Kitchen
• Covered Front Porch
• Covered Rear Porch
• Crawlspace
• Family Room
• Fireplace
• Front Porch
• Great Room
• Home Office
• Laundry 1st Fl
• Master Bdrm Main Floor
• Nook / Breakfast Area
• Peninsula / Eating Bar
• Rear Porch
• Separate Tub and Shower
• Side-entry
• Sitting Area
• Slab
• Split Bedrooms
• Suited for corner lot
• Unfinished Space
• Walk-in Closet
