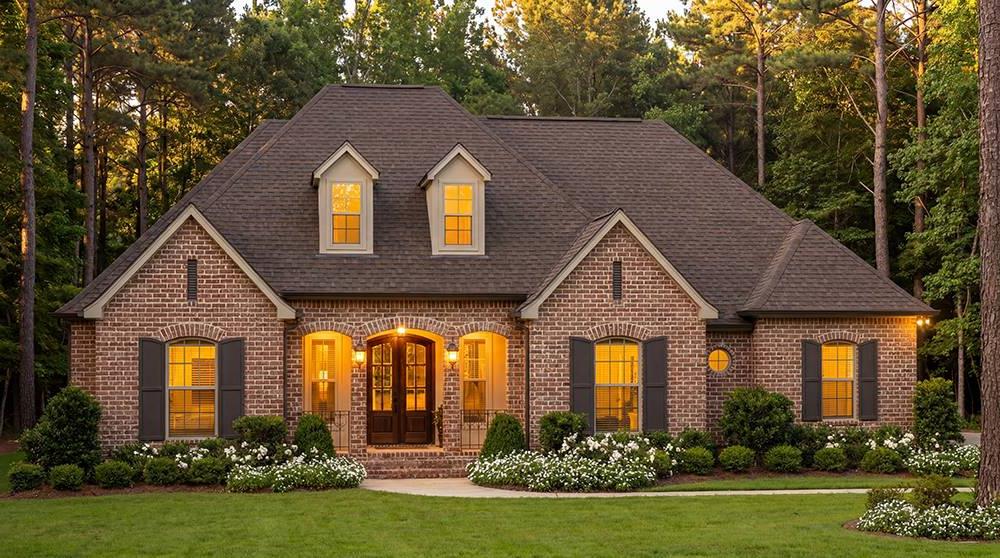

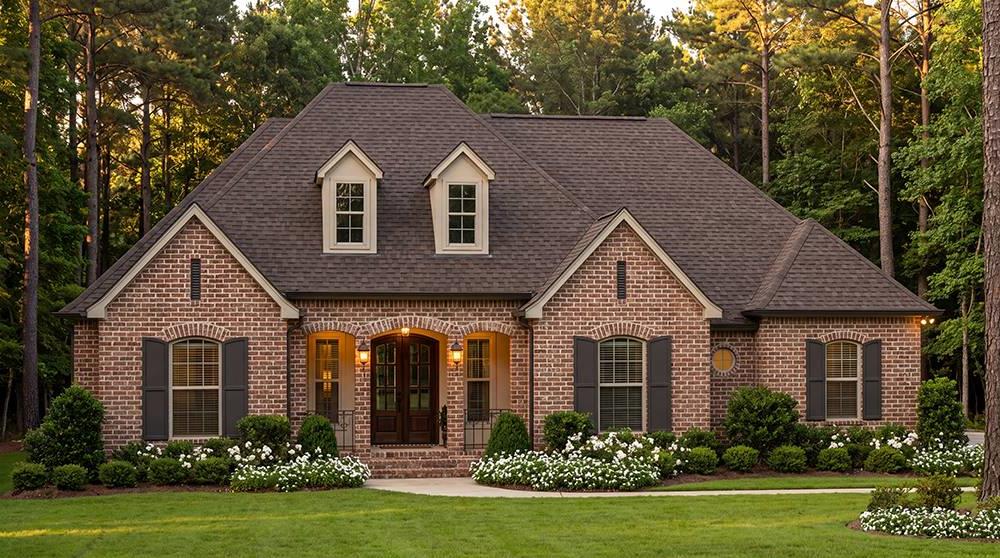

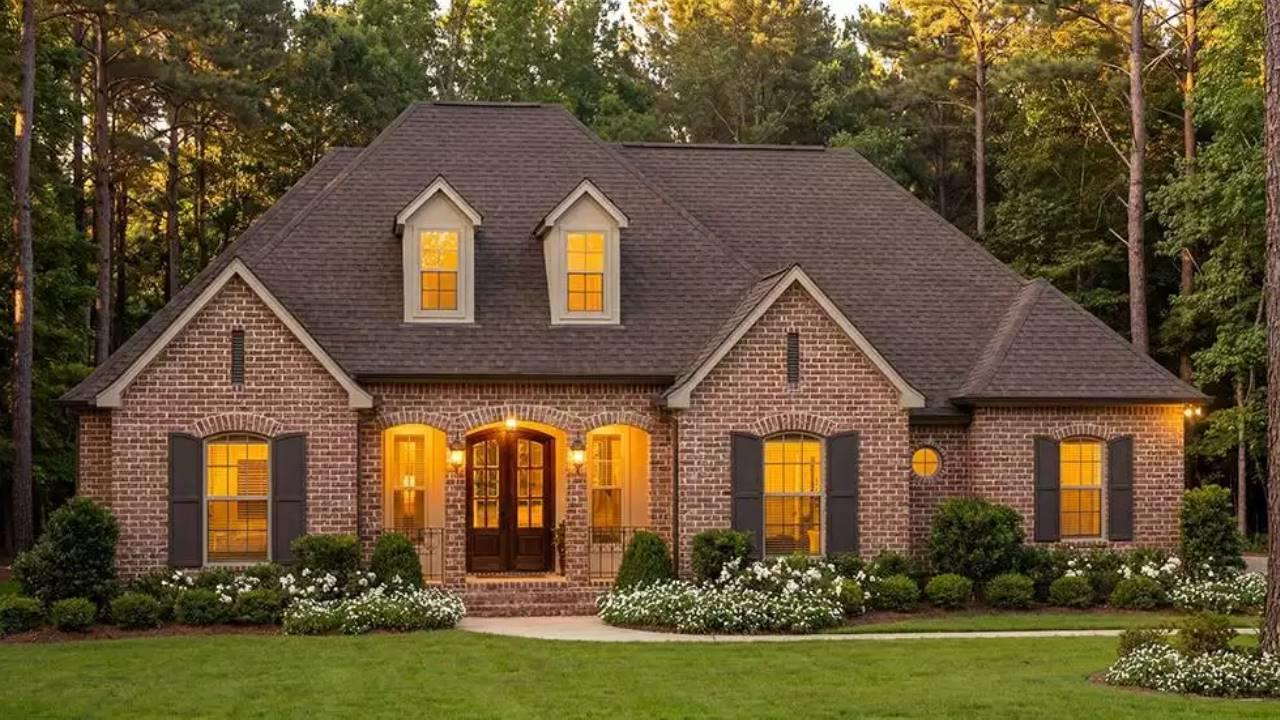

Front View Gracie Rendering Front Rendering Rear Rendering Great Room Great Room Kitchen Primary Bedroom Gracie Rendering First Floor Plan Second Floor Plan
See all 11 photos and rear view
Photographs may reflect modified homes
© copyright by designer

Plan: 0707 Gracie

Plan Specification
Total Square Footage: 2,280
Main Level: 2,280
Bonus: 1,166
Bedrooms: 3
Baths: 2 Half: 1
Garages: 2
Width/Depth: 62 ft / 77 ft
Foundation: Basement, Crawl Space, Slab
View typical construction drawing >
© copyright by designer
First Floor Plan:
First Floor Plan
© copyright by designer
Second Floor Plan:
Second Floor Plan
Similar plans: 0416, 0418, 0506, 0413
Add to Favorites
Purchase Plans
House Plan Pricing
$1,405.00
$1,915.00
$2,415.00
Foundation Options
$0.00
$375.00
$375.00
Additional Plan Options
$300.00
Plan Details
General House Information
1
Number of Stories:
62' 11"
Width:
77' 1"
Depth:
Single
Dwelling Number:
2nd Floor
Bonus Access:
Exterior Style
Old House Classics
European
French Country
Ranch
Southern
Traditional
Facade
Brick
Number of Rooms
3
Bedrooms:
2
Full Baths:
1
Half Baths:
Finished Square Footage
2,280 Sq. Ft.
Main Level:
2,280 Sq. Ft.
Total:
Unfinished Square Footage
GARAGE
Rear
Garage Location:
2
Garage Size:
Foundation
Basement
Crawl Space
Slab
House And Ceiling Heights
10
First Floor Ceiling:
30' 0"
Maximum House Height:
Framing Information
Stick
Roof Framing:
2x4
Exterior Wall Framing:
Roof Pitch
13/12
Primary:
5/12
Secondary:
Roof Load
30
Live:
15
Dead:
Insulation (R)
Per IRC Climate Zones
Number of Rooms
3
Bedrooms:
2
Full Baths:
1
Half Baths:
Key Features
• Attached
• Basement
• Country Kitchen
• Covered Front Porch
• Covered Rear Porch
• Crawlspace
• Dining Room
• Double Vanity Sink
• Family Room
• Fireplace
• Great Room
• Home Office
• Laundry 1st Fl
• L-Shaped
• Master Bdrm Main Floor
• Nook / Breakfast Area
• Outdoor Kitchen
• Pantry
• Peninsula / Eating Bar
• Separate Tub and Shower
• Side-entry
• Sitting Area
• Slab
• Split Bedrooms
• Suited for corner lot
• Suited for view lot
• Unfinished Space
• U-Shaped
• Walk-in Closet
