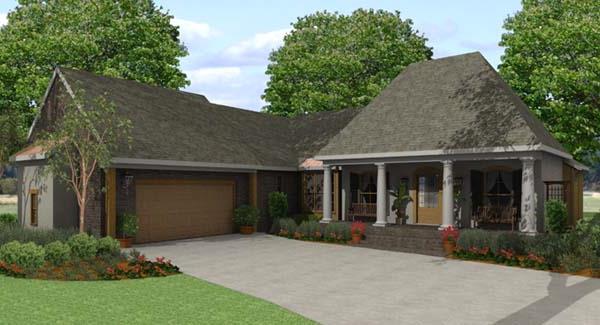

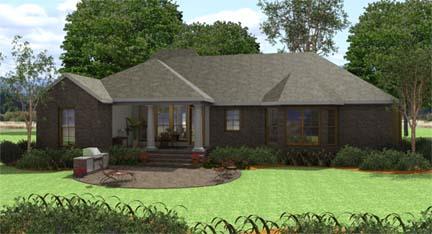

Front Rendering Rear Rendering Floor Plan Basement Stair Location

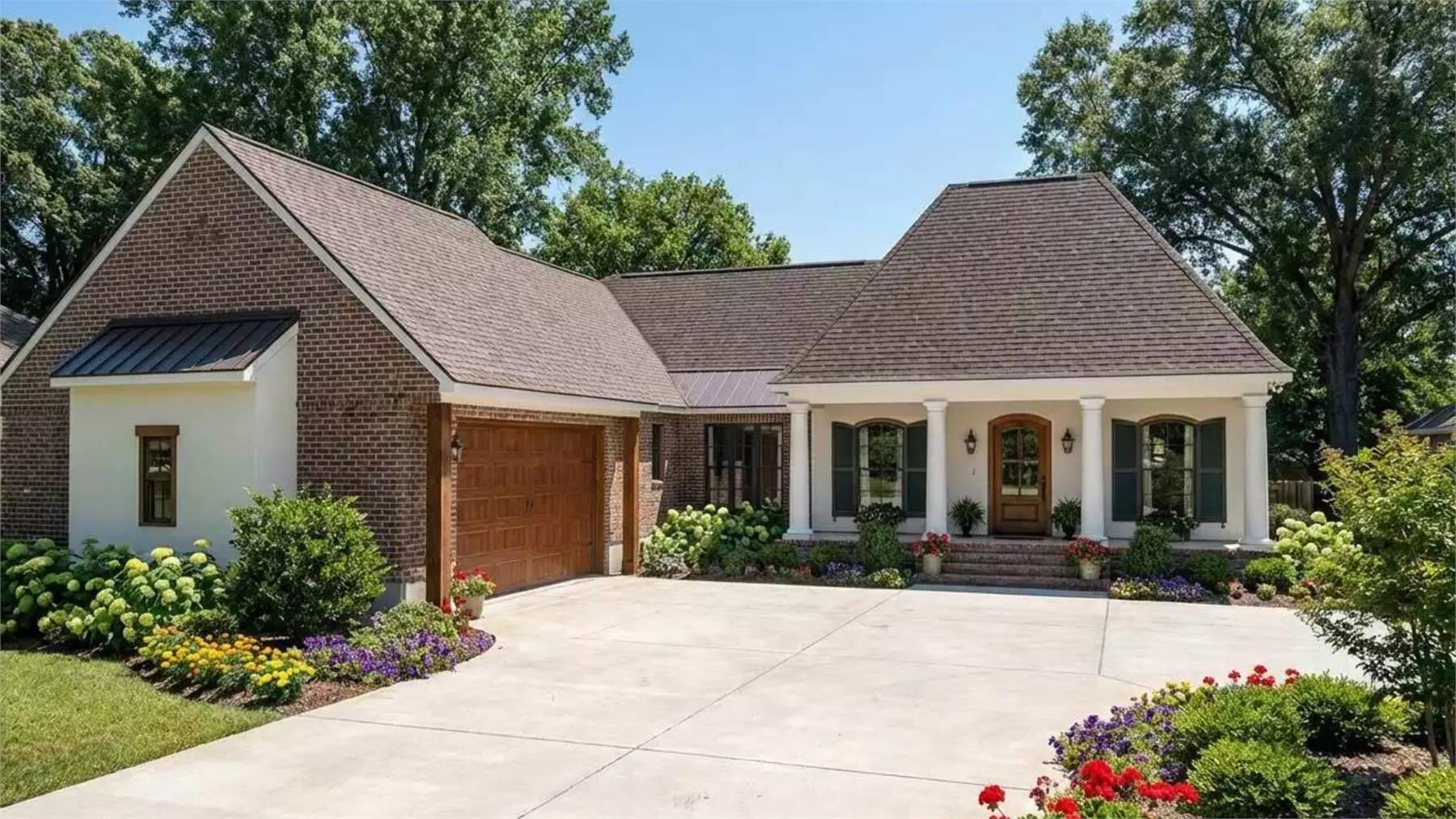

See all 4 photos and rear view
Photographs may reflect modified homes
© copyright by designer

Plan: 0501 St. Martin

Plan Specification
Total Square Footage: 2,365
Main Level: 2,365
Bedrooms: 4
Baths: 3 Half: 0
Garages: 2
Width/Depth: 70 ft / 96 ft
Foundation: Basement, Crawl Space, Slab
View typical construction drawing >
© copyright by designer
Floor Plan:
Floor Plan
© copyright by designer
Basement Stair Location:
Basement Stair Location
Similar plans: 0416, 0413, 9809, 0506
Add to Favorites
Purchase Plans
House Plan Pricing
$1,360.00
$1,705.00
$1,880.00
$2,315.00
Foundation Options
$0.00
$350.00
$350.00
Additional Plan Options
$300.00
Plan Details
General House Information
1
Number of Stories:
70' 11"
Width:
96' 6"
Depth:
Single
Dwelling Number:
Exterior Style
Old House Classics
French Country
Southern
Traditional
Facade
Brick
Stucco
Number of Rooms
4
Bedrooms:
3
Full Baths:
Finished Square Footage
2,365 Sq. Ft.
Main Level:
2,365 Sq. Ft.
Total:
Unfinished Square Footage
791 Sq. Ft.
Garage:
357 Sq. Ft.
Porch:
GARAGE
Front
Garage Location:
2
Garage Size:
Foundation
Basement
Crawl Space
Slab
House And Ceiling Heights
10 & 12
First Floor Ceiling:
26' 0"
Maximum House Height:
Framing Information
Stick
Roof Framing:
2x4
Exterior Wall Framing:
Roof Pitch
12/15
Primary:
12/18
Secondary:
8/12
Teritary:
11/12
Gable:
Roof Load
30
Live:
15
Dead:
Insulation (R)
Per IRC Climate Zones
Number of Rooms
4
Bedrooms:
3
Full Baths:
Key Features
• Attached
• Basement
• Country Kitchen
• Covered Front Porch
• Covered Rear Porch
• Crawlspace
• Dining Room
• Family Room
• Fireplace
• Foyer
• Front Porch
• Great Room
• Guest Suite
• His and Hers Master Closets
• Kitchen Island
• Laundry 1st Fl
• Master Bdrm Main Floor
• Nook / Breakfast Area
• Open Floor Plan
• Rear Porch
• Separate Tub and Shower
• Side-entry
• Sitting Area
• Slab
• Split Bedrooms
• Suited for corner lot
• Suited for view lot
• Vaulted Ceilings
• Walk-in Closet
