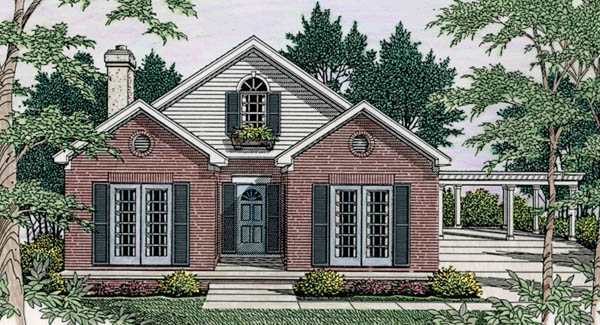

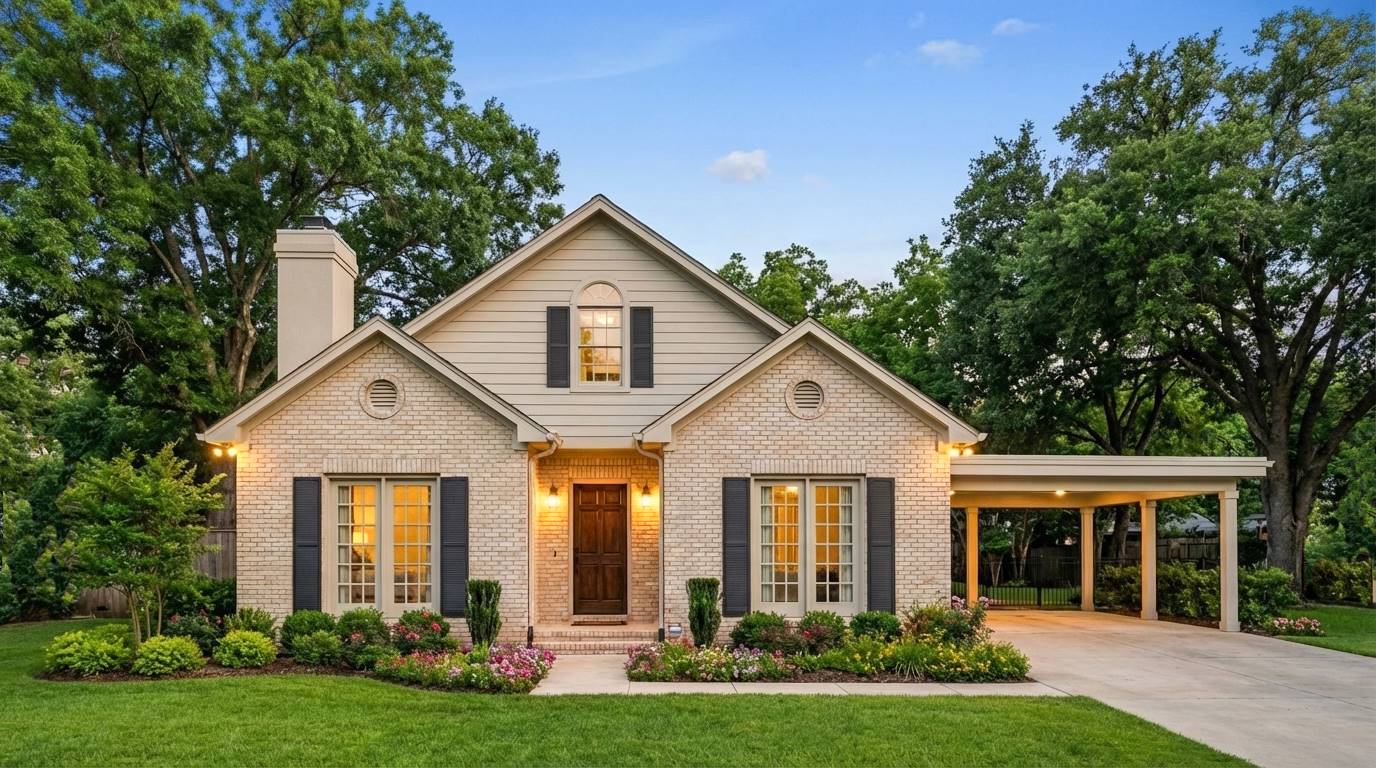

Front Rendering Front Exterior Rear Exterior First Floor Plan Second Floor Plan
See all 5 photos and rear view
Photographs may reflect modified homes
© copyright by designer

Plan: 9518 Weldon

Plan Specification
Total Square Footage: 1,480
Main Level: 1,480
Bonus: 536
Bedrooms: 2
Baths: 2 Half: 0
Garages: 3
Width/Depth: 59 ft / 49 ft
Foundation: Basement, Crawl Space, Slab
View typical construction drawing >
© copyright by designer
First Floor Plan:
First Floor Plan
© copyright by designer
Second Floor Plan:
Second Floor Plan
Similar plans: 9425, 9712
Add to Favorites
Purchase Plans
House Plan Pricing
$1,060.00
$1,260.00
$1,435.00
$1,965.00
Foundation Options
$0.00
$350.00
$350.00
Plan Details
General House Information
1.5
Number of Stories:
59' 0"
Width:
49' 0"
Depth:
Single
Dwelling Number:
2nd Floor
Bonus Access:
Exterior Style
Old House Classics
Colonial
Southern
Traditional
Facade
Brick/Siding
Number of Rooms
2
Bedrooms:
2
Full Baths:
Finished Square Footage
1,480 Sq. Ft.
Main Level:
1,480 Sq. Ft.
Total:
Unfinished Square Footage
519 Sq. Ft.
Garage:
536 Sq. Ft.
Bonus Room:
GARAGE
Side
Garage Location:
3
Garage Size:
Foundation
Basement
Crawl Space
Slab
House And Ceiling Heights
9
First Floor Ceiling:
8
Second Floor Ceiling:
21' 0"
Maximum House Height:
Framing Information
Stick
Roof Framing:
2x4
Exterior Wall Framing:
Roof Pitch
8/12
Primary:
Roof Load
30
Live:
15
Dead:
Insulation (R)
Per IRC Climate Zones
Number of Rooms
2
Bedrooms:
2
Full Baths:
Key Features
• Attached
• Basement
• Carport
• Crawlspace
• Double Vanity Sink
• Fireplace
• Front-entry
• Great Room
• Laundry 1st Fl
• Master Bdrm Main Floor
• No Porch
• Screened Porch/Sunroom
• Slab
• Unfinished Space
