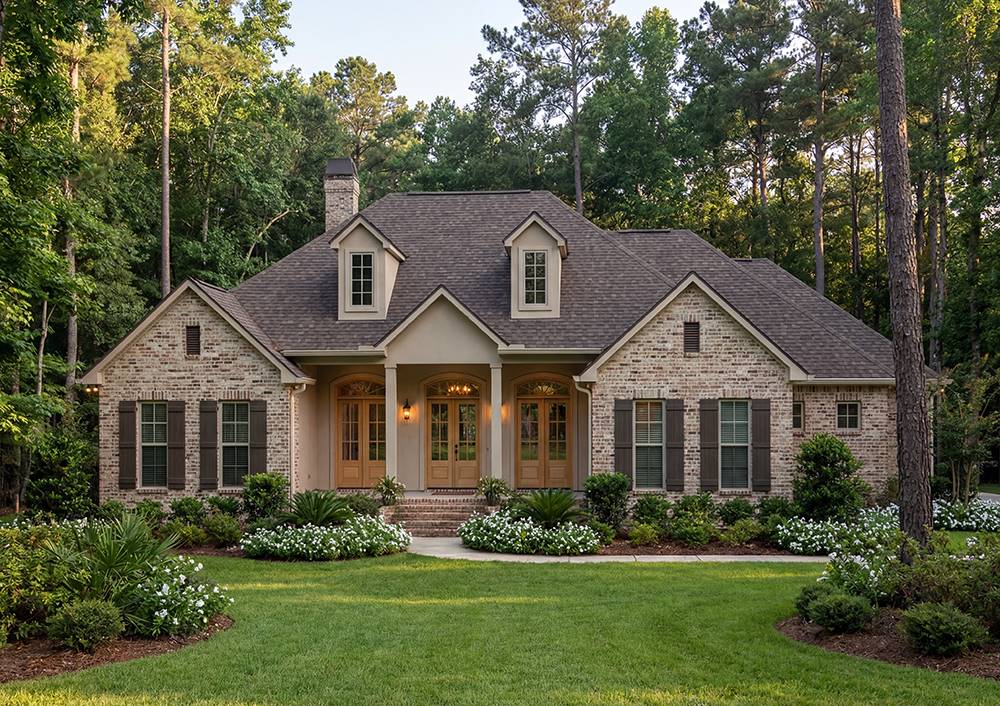

Front Rendering Front Exterior Front Exterior Rear Exterior First Floor Plan Second Floor Plan
See all 6 photos and rear view
Photographs may reflect modified homes
© copyright by designer

Plan: 9416 Carlton

Plan Specification
Total Square Footage: 2,184
Main Level: 2,184
Bonus: 572
Bedrooms: 3
Baths: 2 Half: 1
Garages: 2
Width/Depth: 68 ft / 62 ft
Foundation: Basement, Crawl Space, Slab
© copyright by designer
First Floor Plan:
First Floor Plan
© copyright by designer
Second Floor Plan:
Second Floor Plan
Similar plans: 9415
Add to Favorites
Purchase Plans
House Plan Pricing
$1,260.00
$1,455.00
$1,630.00
$2,215.00
Foundation Options
$0.00
$350.00
$350.00
Additional Plan Options
$255.00
Plan Details
General House Information
1.5
Number of Stories:
68' 0"
Width:
62' 0"
Depth:
Single
Dwelling Number:
1st Floor
Bonus Access:
Exterior Style
Old House Classics
Colonial
Southern
Traditional
Facade
Brick
Stucco
Number of Rooms
3
Bedrooms:
2
Full Baths:
1
Half Baths:
Finished Square Footage
2,184 Sq. Ft.
Main Level:
2,184 Sq. Ft.
Total:
Unfinished Square Footage
550 Sq. Ft.
Garage:
233 Sq. Ft.
Porch:
572 Sq. Ft.
Bonus Room:
GARAGE
Side
Garage Location:
2
Garage Size:
Foundation
Basement
Crawl Space
Slab
House And Ceiling Heights
9
First Floor Ceiling:
8
Second Floor Ceiling:
25' 0"
Maximum House Height:
Framing Information
Stick
Roof Framing:
2x4
Exterior Wall Framing:
Roof Pitch
9/12
Primary:
Roof Load
30
Live:
15
Dead:
Insulation (R)
Per IRC Climate Zones
Number of Rooms
3
Bedrooms:
2
Full Baths:
1
Half Baths:
Key Features
• Attached
• Basement
• Bonus Room
• Covered Front Porch
• Covered Rear Porch
• Crawlspace
• Dining Room
• Double Vanity Sink
• Fireplace
• Foyer
• Great Room
• His and Hers Master Closets
• Home Office
• Laundry 1st Fl
• Master Bdrm Main Floor
• Nook / Breakfast Area
• Peninsula / Eating Bar
• Separate Tub and Shower
• Side-entry
• Slab
• Split Bedrooms
• Storage Space
• Suited for corner lot
• Suited for view lot
• Unfinished Space
• Walk-in Closet
