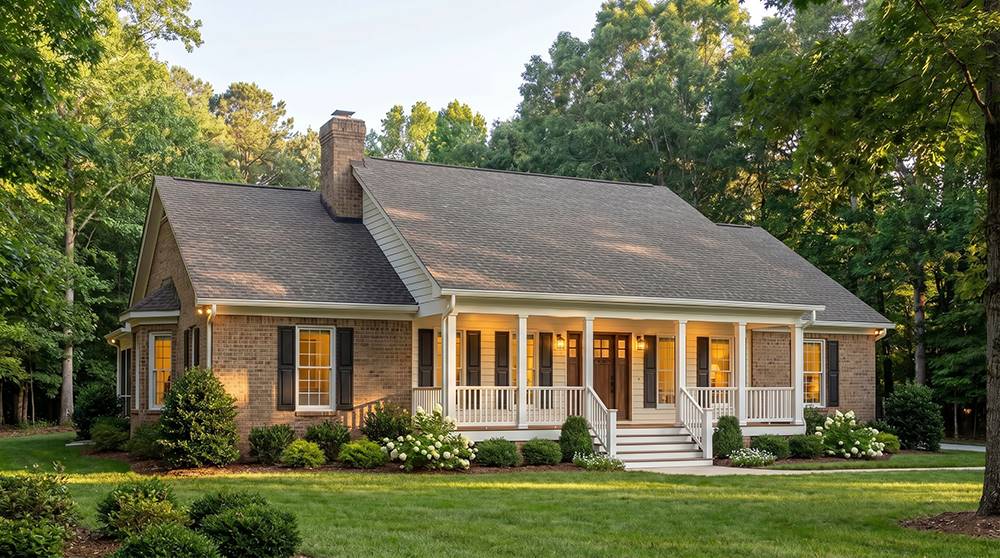

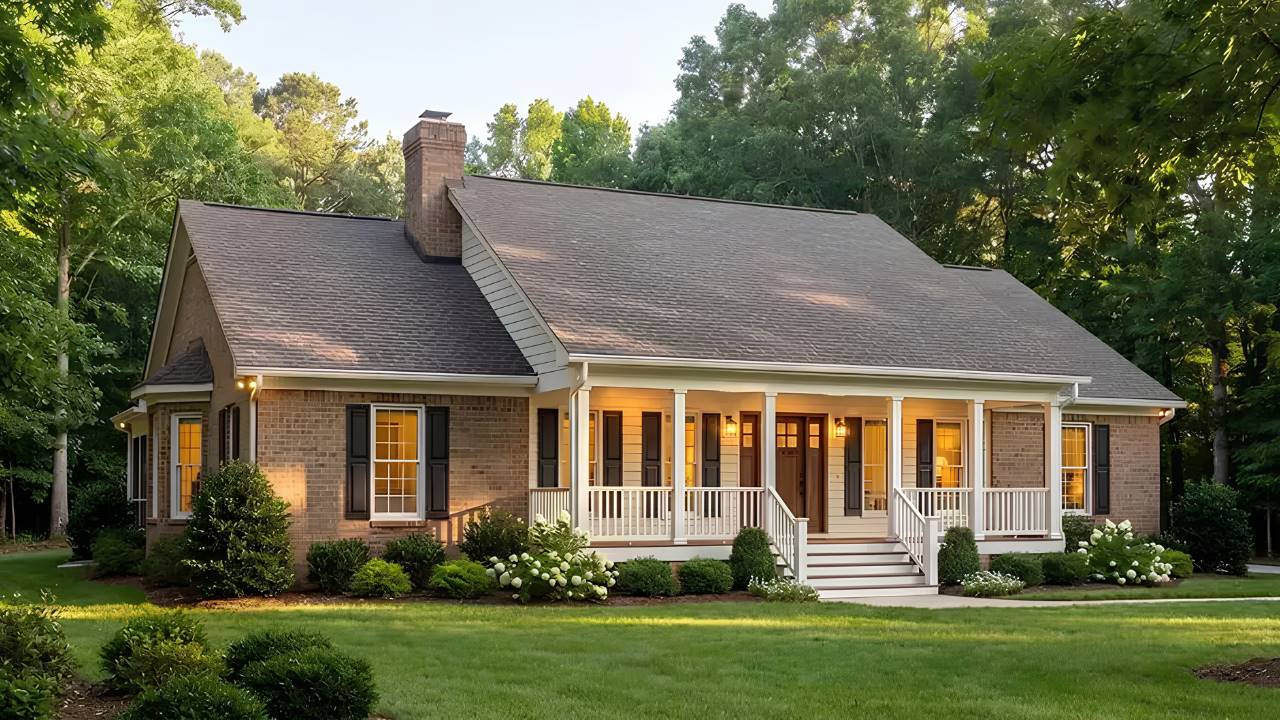

Front Rendering Rear Exterior First Floor Plan
See all 3 photos and rear view
Photographs may reflect modified homes
© copyright by designer

Plan: 9704 Madison II

Plan Specification
Total Square Footage: 1,884
Main Level: 1,884
Bedrooms: 3
Baths: 2 Half: 1
Garages: 2
Width/Depth: 69 ft / 63 ft
Foundation: Basement, Crawl Space, Slab
© copyright by designer
First Floor Plan:
First Floor Plan
Similar plans: 9508, 86140
Add to Favorites
Purchase Plans
House Plan Pricing
$1,050.00
$1,090.00
$1,950.00
Foundation Options
$0.00
$0.00
$0.00
Additional Plan Options
$55.00
$65.00
$255.00
$255.00
Plan Details
General House Information
1
Number of Stories:
69' 0"
Width:
63' 2"
Depth:
Single
Dwelling Number:
None
Bonus Access:
Exterior Style
Country
Southern
Traditional
Facade
Brick/Siding
Number of Rooms
3
Bedrooms:
2
Full Baths:
1
Half Baths:
Finished Square Footage
1,884 Sq. Ft.
Main Level:
1,884 Sq. Ft.
Total:
Unfinished Square Footage
544 Sq. Ft.
Garage:
417 Sq. Ft.
Porch:
GARAGE
Rear
Garage Location:
2
Garage Size:
Foundation
Basement
Crawl Space
Slab
House And Ceiling Heights
8
First Floor Ceiling:
Framing Information
Stick
Roof Framing:
2x4
Exterior Wall Framing:
Roof Pitch
7/12
Primary:
Roof Load
30
Live:
15
Dead:
Insulation (R)
Per IRC Climate Zones
Number of Rooms
3
Bedrooms:
2
Full Baths:
1
Half Baths:
Key Features
• Attached
• Basement
• Covered Front Porch
• Covered Rear Porch
• Crawlspace
• Double Vanity Sink
• Fireplace
• Front Porch
• Great Room
• His and Hers Master Closets
• Kitchen Island
• Laundry 1st Fl
• Master Bdrm Main Floor
• Mud Room
• Nook / Breakfast Area
• Peninsula / Eating Bar
• Rear Porch
• Rear-entry
• Separate Tub and Shower
• Slab
• Storage Space
• Suited for corner lot
• Vaulted Ceilings
• Walk-in Closet
• Walk-in Pantry
