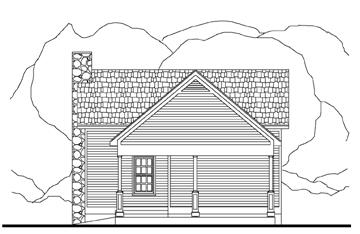

Front Rendering Front Exterior Rear Exterior First Floor Plan Second Floor Plan
See all 5 photos and rear view
Photographs may reflect modified homes
© copyright by designer

Plan: 9503 Ashfield

Plan Specification
Total Square Footage: 852
Main Level: 704
Second Level: 148
Bedrooms: 1
Baths: 1 Half: 0
Garages: 0
Width/Depth: 26 ft / 50 ft
Foundation: Basement, Crawl Space, Slab
© copyright by designer
First Floor Plan:
First Floor Plan
© copyright by designer
Second Floor Plan:
Second Floor Plan
Similar plans: 90016, 9310
Add to Favorites
Purchase Plans
House Plan Pricing
$1,060.00
$1,260.00
$1,435.00
$1,965.00
Foundation Options
$0.00
$350.00
$350.00
Plan Details
General House Information
1.5
Number of Stories:
26' 0"
Width:
50' 0"
Depth:
Single
Dwelling Number:
None
Bonus Access:
Exterior Style
Old House Classics
Vacation
Cottage
Country
Lake
Ranch
Facade
Siding
Number of Rooms
1
Bedrooms:
1
Full Baths:
Finished Square Footage
704 Sq. Ft.
Main Level:
148 Sq. Ft.
Upper Level:
852 Sq. Ft.
Total:
Unfinished Square Footage
256 Sq. Ft.
Garage:
202 Sq. Ft.
Porch:
GARAGE
0
Garage Size:
Foundation
Basement
Crawl Space
Slab
House And Ceiling Heights
8
First Floor Ceiling:
8
Second Floor Ceiling:
Framing Information
Stick
Roof Framing:
2x4
Exterior Wall Framing:
Roof Pitch
10/12
Primary:
Roof Load
30
Live:
15
Dead:
Insulation (R)
Per IRC Climate Zones
Number of Rooms
1
Bedrooms:
1
Full Baths:
Key Features
• Basement
• Carport
• Covered Front Porch
• Covered Rear Porch
• Crawlspace
• Fireplace
• Great Room
• Kitchen Island
• Laundry 1st Fl
• Loft / Balcony
• Master Bdrm Main Floor
• Slab
• Suited for corner lot
• Suited for narrow lot
• Vaulted Ceilings
• Walk-in Closet
