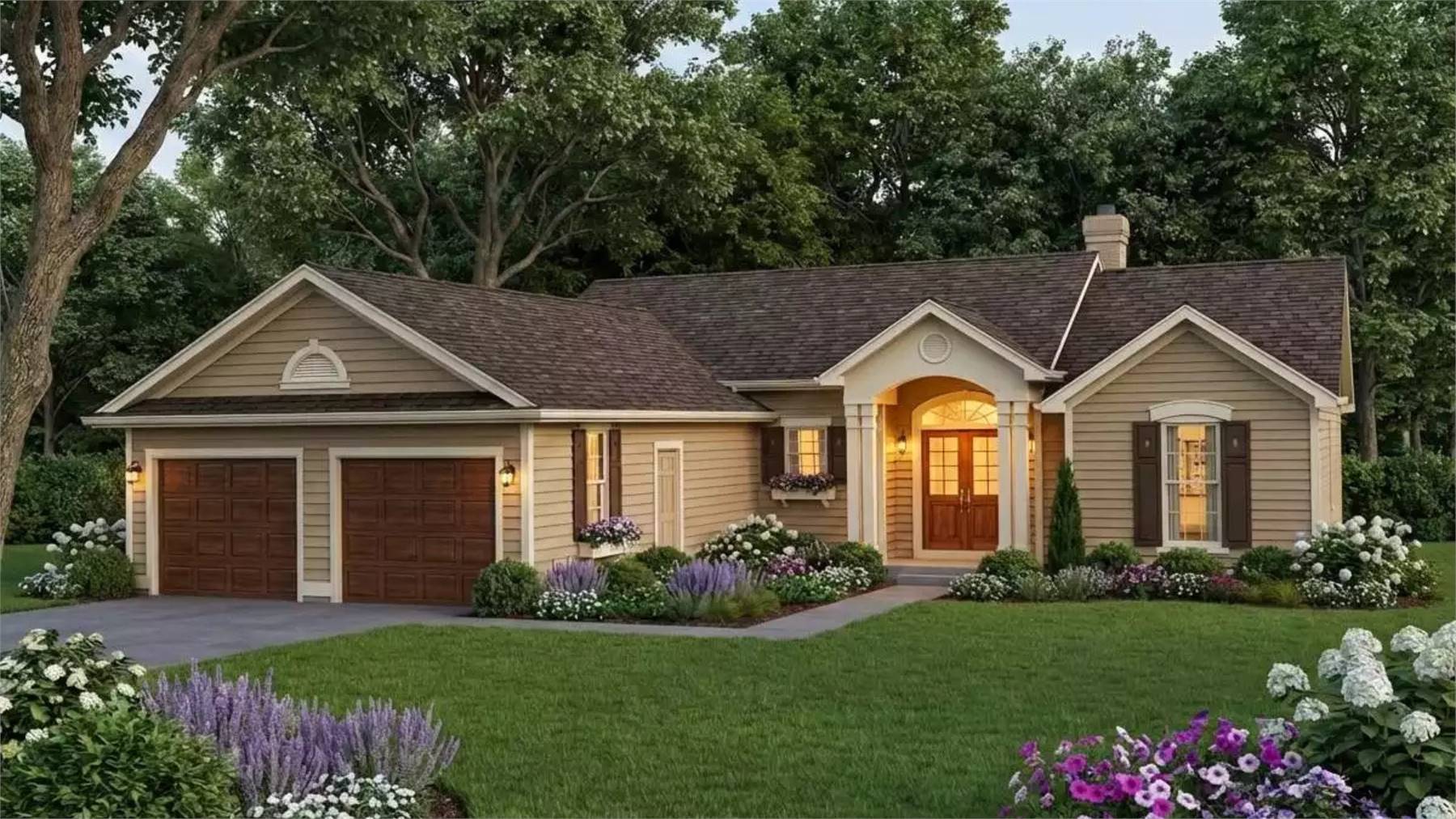

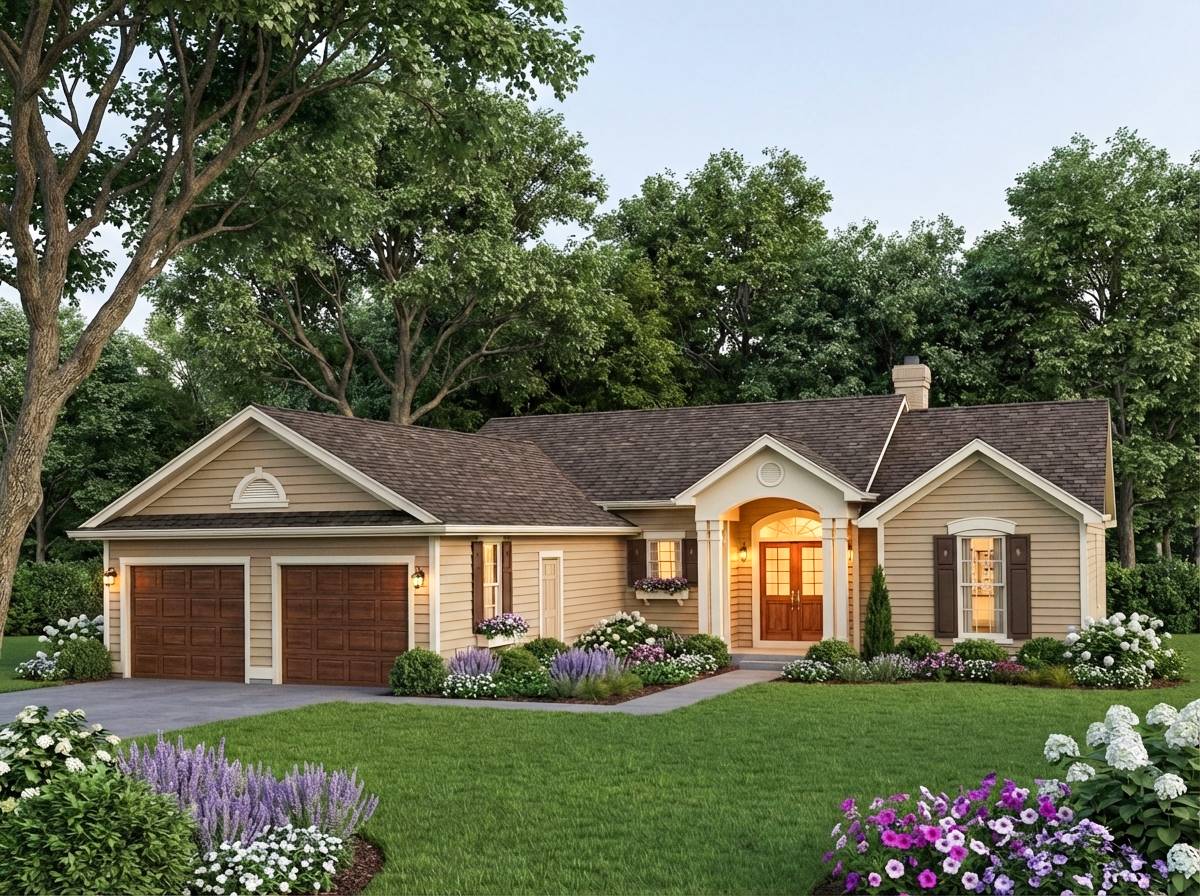

Front Rendering Front Exterior Rear Exterior First Floor Plan
See all 4 photos and rear view
Photographs may reflect modified homes
© copyright by designer

Plan: 9424 Broadford

Plan Specification
Total Square Footage: 1,499
Main Level: 1,499
Bedrooms: 3
Baths: 2 Half: 0
Garages: 2
Width/Depth: 52 ft / 54 ft
Foundation: Basement, Crawl Space, Slab
© copyright by designer
First Floor Plan:
First Floor Plan
Similar plans: 9423
Add to Favorites
Purchase Plans
House Plan Pricing
$895.00
$945.00
$1,000.00
$1,800.00
Foundation Options
$0.00
$0.00
Additional Plan Options
$55.00
$65.00
$255.00
$255.00
Plan Details
General House Information
1
Number of Stories:
52' 6"
Width:
54' 8"
Depth:
Single
Dwelling Number:
None
Bonus Access:
Exterior Style
Cottage
Southern
Traditional
Facade
Siding
Number of Rooms
3
Bedrooms:
2
Full Baths:
Finished Square Footage
1,499 Sq. Ft.
Main Level:
1,499 Sq. Ft.
Total:
Unfinished Square Footage
512 Sq. Ft.
Garage:
67 Sq. Ft.
Porch:
GARAGE
Front
Garage Location:
2
Garage Size:
Foundation
Basement
Crawl Space
Slab
House And Ceiling Heights
8
First Floor Ceiling:
19' 0"
Maximum House Height:
Framing Information
Stick
Roof Framing:
2x4
Exterior Wall Framing:
Roof Pitch
7/12
Primary:
Roof Load
30
Live:
15
Dead:
Insulation (R)
Per IRC Climate Zones
Number of Rooms
3
Bedrooms:
2
Full Baths:
Key Features
• 2 Story Volume
• Attached
• Basement
• Covered Front Porch
• Crawlspace
• Fireplace
• Foyer
• Front-entry
• Great Room
• Laundry 1st Fl
• Master Bdrm Main Floor
• Open Floor Plan
• Peninsula / Eating Bar
• Separate Tub and Shower
• Slab
• Split Bedrooms
• Storage Space
• Suited for narrow lot
• Suited for view lot
• Vaulted Ceilings
• Walk-in Closet
