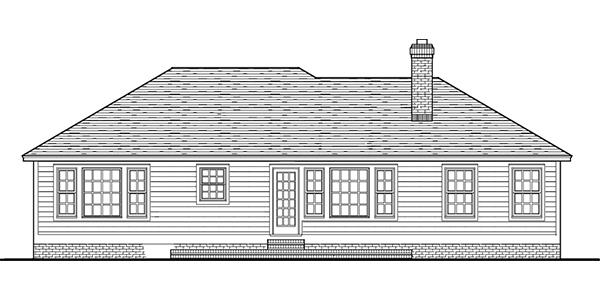

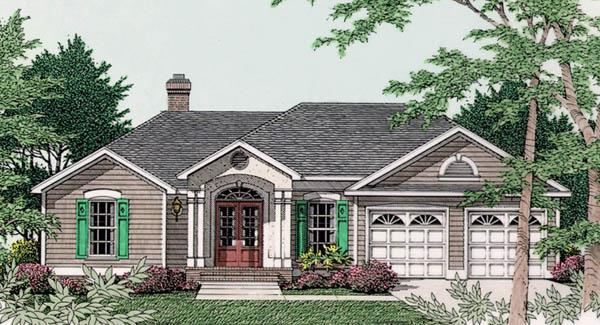

Front Rendering Front Exterior Rear Elevation First Floor Plan Basement Stair Location
See all 5 photos and rear view
Photographs may reflect modified homes
© copyright by designer

Plan: 9423 New Abbey

Plan Specification
Total Square Footage: 1,392
Main Level: 1,392
Bedrooms: 3
Baths: 2 Half: 0
Garages: 2
Width/Depth: 52 ft / 52 ft
Foundation: Basement, Crawl Space, Slab
View typical construction drawing >
© copyright by designer
First Floor Plan:
First Floor Plan
© copyright by designer
Basement Stair Location:
Basement Stair Location
Similar plans: 9518
Add to Favorites
Purchase Plans
House Plan Pricing
$1,060.00
$1,260.00
$1,435.00
$1,965.00
Foundation Options
$0.00
$350.00
$350.00
Plan Details
General House Information
1
Number of Stories:
52' 6"
Width:
52' 8"
Depth:
Single
Dwelling Number:
None
Bonus Access:
Exterior Style
Old House Classics
Ranch
Southern
Traditional
Facade
Siding
Number of Rooms
3
Bedrooms:
2
Full Baths:
Finished Square Footage
1,392 Sq. Ft.
Main Level:
1,392 Sq. Ft.
Total:
Unfinished Square Footage
514 Sq. Ft.
Garage:
60 Sq. Ft.
Porch:
GARAGE
Front
Garage Location:
2
Garage Size:
Foundation
Basement
Crawl Space
Slab
House And Ceiling Heights
8
First Floor Ceiling:
19' 0"
Maximum House Height:
Framing Information
Stick
Roof Framing:
2x4
Exterior Wall Framing:
Roof Pitch
7/12
Primary:
Roof Load
30
Live:
15
Dead:
Insulation (R)
Per IRC Climate Zones
Number of Rooms
3
Bedrooms:
2
Full Baths:
Key Features
• Attached
• Basement
• Covered Front Porch
• Crawlspace
• Fireplace
• Foyer
• Front-entry
• Great Room
• His and Hers Master Closets
• Kitchen Island
• Laundry 1st Fl
• Master Bdrm Main Floor
• Open Floor Plan
• Slab
• Split Bedrooms
• Storage Space
• Suited for corner lot
• Suited for narrow lot
• Vaulted Ceilings
• Walk-in Closet
