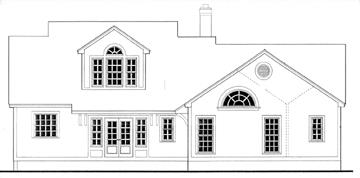

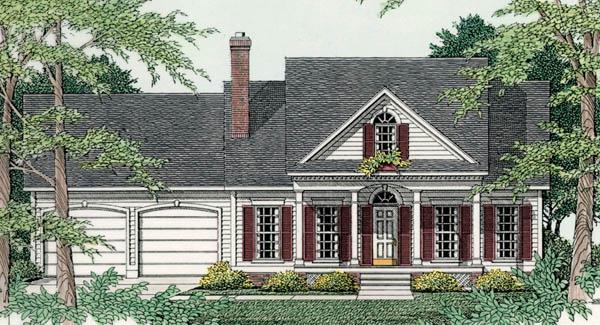

Front Rendering Front Exterior Rear Exterior First Floor Plan Second Floor Plan
See all 5 photos and rear view
Photographs may reflect modified homes
© copyright by designer

Plan: 9410 Cantwell

Plan Specification
Total Square Footage: 2,293
Main Level: 1,588
Second Level: 705
Bedrooms: 3
Baths: 2 Half: 1
Garages: 2
Width/Depth: 56 ft / 52 ft
Foundation: Basement, Crawl Space, Slab
View typical construction drawing >
© copyright by designer

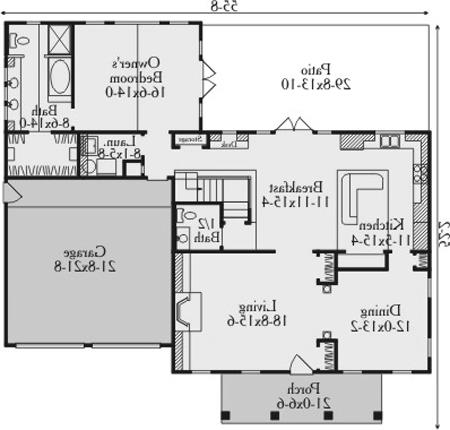

First Floor Plan:
First Floor Plan
© copyright by designer

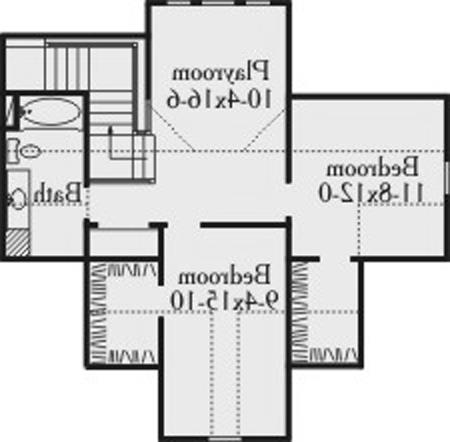

Second Floor Plan:
Second Floor Plan
Similar plans: 9409, 9519, 9311
Add to Favorites
Purchase Plans
House Plan Pricing
$1,360.00
$1,705.00
$1,880.00
$2,315.00
Foundation Options
$0.00
$350.00
$350.00
Plan Details
General House Information
1.5
Number of Stories:
56' 0"
Width:
52' 2"
Depth:
Single
Dwelling Number:
None
Bonus Access:
Exterior Style
Old House Classics
Cottage
Southern
Traditional
Facade
Siding
Number of Rooms
3
Bedrooms:
2
Full Baths:
1
Half Baths:
Finished Square Footage
1,588 Sq. Ft.
Main Level:
705 Sq. Ft.
Upper Level:
2,293 Sq. Ft.
Total:
Unfinished Square Footage
490 Sq. Ft.
Garage:
137 Sq. Ft.
Porch:
GARAGE
Front
Garage Location:
2
Garage Size:
Foundation
Basement
Crawl Space
Slab
House And Ceiling Heights
9
First Floor Ceiling:
8
Second Floor Ceiling:
25' 0"
Maximum House Height:
Framing Information
Stick
Roof Framing:
2x4
Exterior Wall Framing:
Roof Pitch
8/12
Primary:
Roof Load
30
Live:
15
Dead:
Insulation (R)
Per IRC Climate Zones
Number of Rooms
3
Bedrooms:
2
Full Baths:
1
Half Baths:
Key Features
• Attached
• Basement
• Covered Front Porch
• Crawlspace
• Dining Room
• Double Vanity Sink
• Fireplace
• Front-entry
• Great Room
• Kitchen Island
• Laundry 1st Fl
• Master Bdrm Main Floor
• Nook / Breakfast Area
• Peninsula / Eating Bar
• Rec Room
• Separate Tub and Shower
• Slab
• Split Bedrooms
• Walk-in Closet
• Walk-in Pantry
