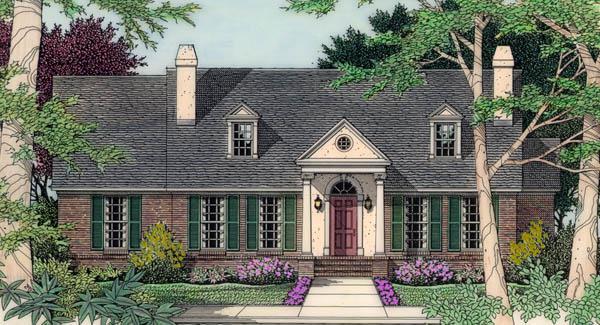

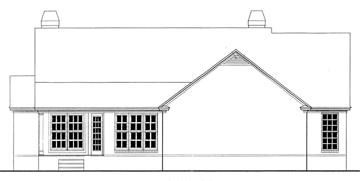

Front Rendering Front Exterior Rear Exterior First Floor Plan Second Floor Plan
See all 5 photos and rear view
Photographs may reflect modified homes
© copyright by designer

Plan: 9403 Stormont

Plan Specification
Total Square Footage: 1,893
Main Level: 1,646
Second Level: 247
Bonus: 365
Bedrooms: 3
Baths: 2 Half: 0
Garages: 2
Width/Depth: 53 ft / 62 ft
Foundation: Basement, Crawl Space, Slab
© copyright by designer

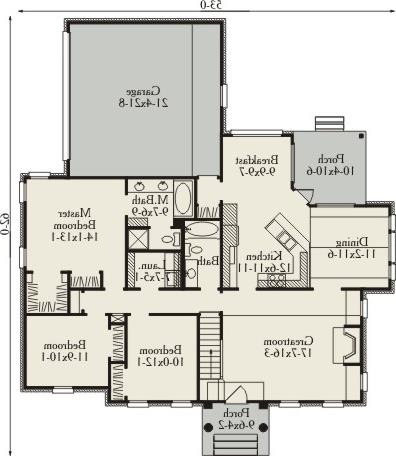

First Floor Plan:
First Floor Plan
© copyright by designer

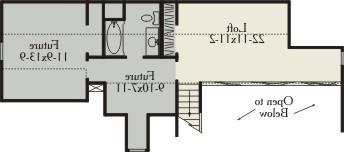

Second Floor Plan:
Second Floor Plan
Similar plans: 9404
Add to Favorites
Purchase Plans
House Plan Pricing
$1,160.00
$1,355.00
$1,530.00
$2,065.00
Foundation Options
$0.00
$350.00
$350.00
Additional Plan Options
$255.00
Plan Details
General House Information
1.5
Number of Stories:
53' 0"
Width:
62' 0"
Depth:
Single
Dwelling Number:
1st Floor
Bonus Access:
Exterior Style
Old House Classics
Cape Cod
Colonial
Southern
Facade
Brick
Stucco
Number of Rooms
3
Bedrooms:
2
Full Baths:
Finished Square Footage
1,646 Sq. Ft.
Main Level:
247 Sq. Ft.
Upper Level:
1,893 Sq. Ft.
Total:
Unfinished Square Footage
516 Sq. Ft.
Garage:
146 Sq. Ft.
Porch:
365 Sq. Ft.
Bonus Room:
GARAGE
Rear
Garage Location:
2
Garage Size:
Foundation
Basement
Crawl Space
Slab
House And Ceiling Heights
8
First Floor Ceiling:
8
Second Floor Ceiling:
23' 0"
Maximum House Height:
Framing Information
Stick
Roof Framing:
2x4
Exterior Wall Framing:
Roof Pitch
9/12
Primary:
Roof Load
30
Live:
15
Dead:
Insulation (R)
Per IRC Climate Zones
Number of Rooms
3
Bedrooms:
2
Full Baths:
Key Features
• Attached
• Basement
• Covered Front Porch
• Covered Rear Porch
• Crawlspace
• Double Vanity Sink
• Fireplace
• Great Room
• His and Hers Master Closets
• Laundry 1st Fl
• Loft / Balcony
• Master Bdrm Main Floor
• Nook / Breakfast Area
• Peninsula / Eating Bar
• Separate Tub and Shower
• Side-entry
• Slab
• Suited for corner lot
• Unfinished Space
• Vaulted Ceilings
• Walk-in Closet
