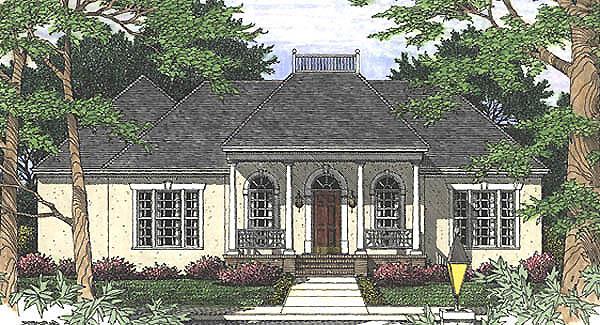

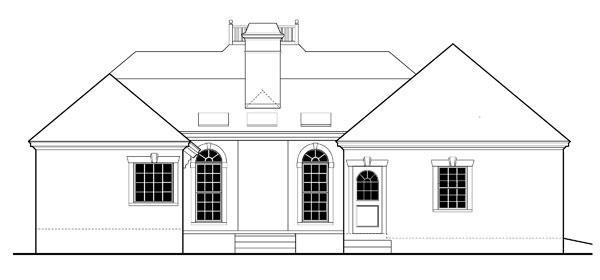

Front Rendering Rear Elevation Floor Plan Basement Stair Location
See all 4 photos and rear view
Photographs may reflect modified homes
© copyright by designer

Plan: 9317 Lauder

Plan Specification
Total Square Footage: 1,501
Main Level: 1,501
Bedrooms: 3
Baths: 2 Half: 0
Garages: 2
Width/Depth: 52 ft / 59 ft
Foundation: Basement, Crawl Space, Slab
© copyright by designer

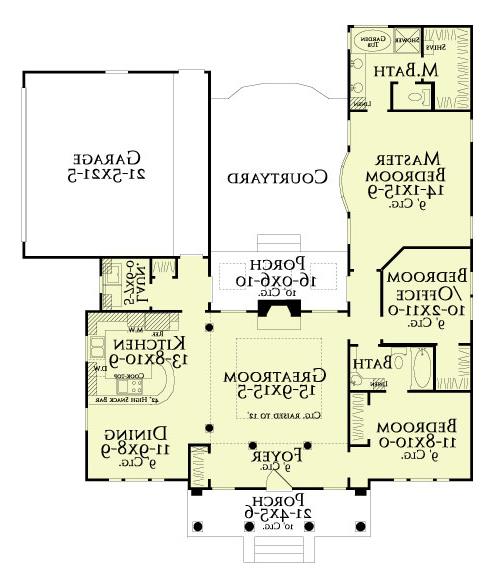

Floor Plan:
Floor Plan
© copyright by designer

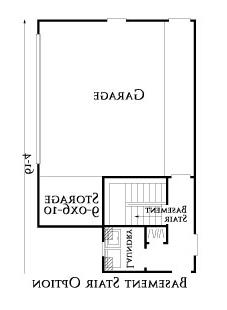

Basement Stair Location:
Basement Stair Location
Similar plans: 9402, 0314
Add to Favorites
Purchase Plans
House Plan Pricing
$1,160.00
$1,355.00
$1,530.00
$2,065.00
Foundation Options
$0.00
$350.00
$350.00
Additional Plan Options
$255.00
Plan Details
General House Information
1
Number of Stories:
52' 8"
Width:
59' 10"
Depth:
Single
Dwelling Number:
None
Bonus Access:
Exterior Style
Florida
Old House Classics
Vacation
Cottage
Southern
Traditional
Facade
Stucco
Number of Rooms
3
Bedrooms:
2
Full Baths:
Finished Square Footage
1,501 Sq. Ft.
Main Level:
1,501 Sq. Ft.
Total:
Unfinished Square Footage
482 Sq. Ft.
Garage:
227 Sq. Ft.
Porch:
GARAGE
Rear
Garage Location:
2
Garage Size:
Foundation
Basement
Crawl Space
Slab
House And Ceiling Heights
9
First Floor Ceiling:
21' 0"
Maximum House Height:
Framing Information
Stick
Roof Framing:
2x4
Exterior Wall Framing:
Roof Pitch
10/12
Primary:
Roof Load
30
Live:
15
Dead:
Insulation (R)
Per IRC Climate Zones
Number of Rooms
3
Bedrooms:
2
Full Baths:
Key Features
• Attached
• Basement
• Courtyard
• Covered Front Porch
• Covered Rear Porch
• Crawlspace
• Double Vanity Sink
• Fireplace
• Foyer
• Great Room
• Laundry 1st Fl
• Open Floor Plan
• Peninsula / Eating Bar
• Separate Tub and Shower
• Side-entry
• Slab
• Suited for corner lot
• Walk-in Closet
