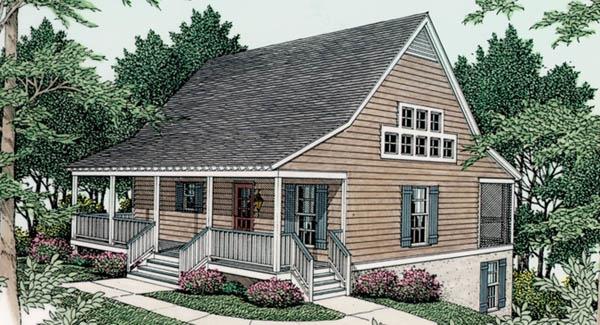

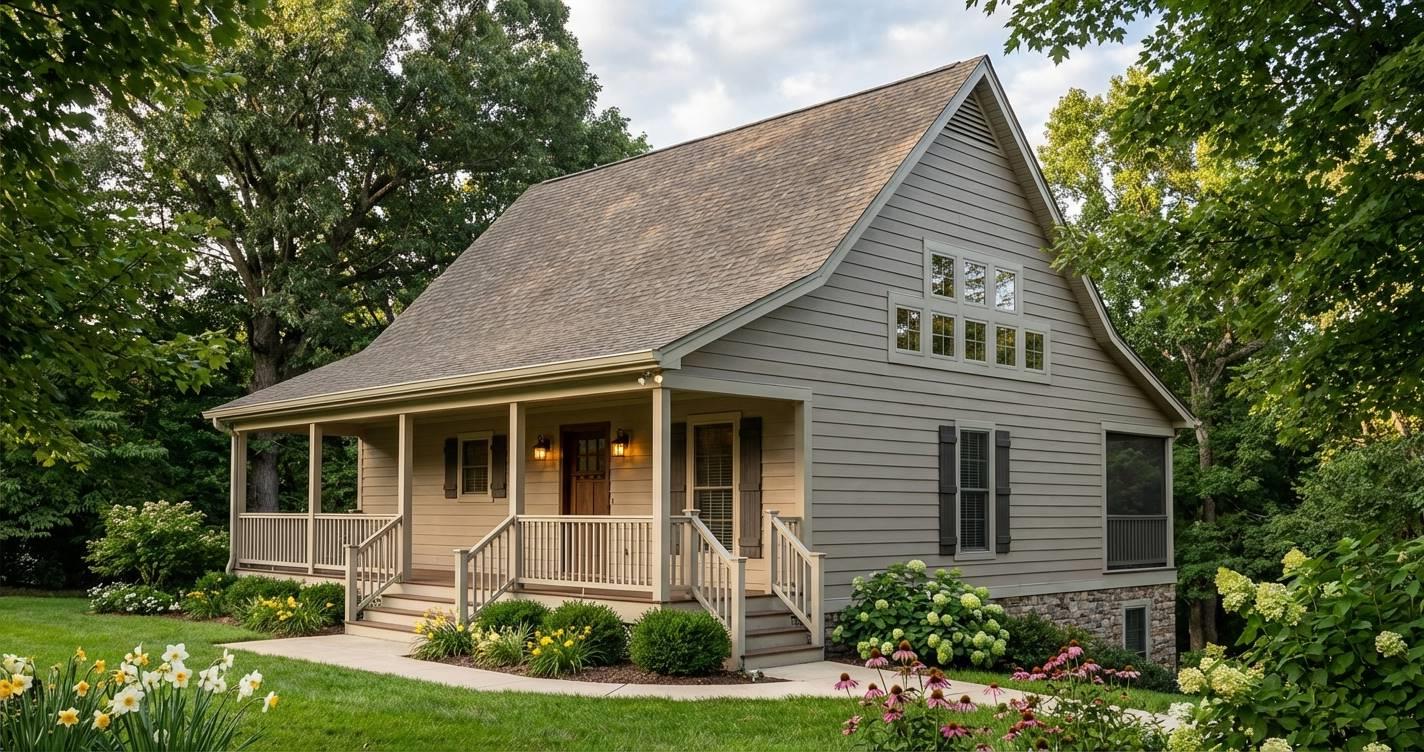

Front Rendering Front Exterior Rear Exterior First Floor Plan Second Floor Plan
See all 5 photos and rear view
Photographs may reflect modified homes
© copyright by designer

Plan: 9310 Springhill

Plan Specification
Total Square Footage: 1,270
Main Level: 865
Second Level: 405
Bedrooms: 2
Baths: 1 Half: 0
Garages: 0
Width/Depth: 36 ft / 40 ft
Foundation: Basement, Crawl Space, Slab
© copyright by designer
First Floor Plan:
First Floor Plan
© copyright by designer
Second Floor Plan:
Second Floor Plan
Similar plans: 90016, 9503
Add to Favorites
Purchase Plans
House Plan Pricing
$1,060.00
$1,260.00
$1,435.00
$1,965.00
Foundation Options
$0.00
$350.00
$350.00
Plan Details
General House Information
1.5
Number of Stories:
36' 0"
Width:
40' 4"
Depth:
Single
Dwelling Number:
None
Bonus Access:
Exterior Style
Mountain
Old House Classics
Rectangular
Vacation
Cottage
Lake
Southern
Facade
Siding
Number of Rooms
2
Bedrooms:
1
Full Baths:
Finished Square Footage
865 Sq. Ft.
Main Level:
405 Sq. Ft.
Upper Level:
1,270 Sq. Ft.
Total:
Unfinished Square Footage
588 Sq. Ft.
Porch:
GARAGE
0
Garage Size:
Foundation
Basement
Crawl Space
Slab
House And Ceiling Heights
8
First Floor Ceiling:
8
Second Floor Ceiling:
25' 0"
Maximum House Height:
Framing Information
Stick
Roof Framing:
2x6
Exterior Wall Framing:
Roof Pitch
12/12
Primary:
Roof Load
30
Live:
15
Dead:
Insulation (R)
Per IRC Climate Zones
Number of Rooms
2
Bedrooms:
1
Full Baths:
Key Features
• Basement
• Covered Front Porch
• Covered Rear Porch
• Crawlspace
• Daylight Basement
• Great Room
• Laundry 1st Fl
• Loft / Balcony
• Master Bdrm Main Floor
• None
• Slab
• Suited for sloping lot
• Vaulted Ceilings
