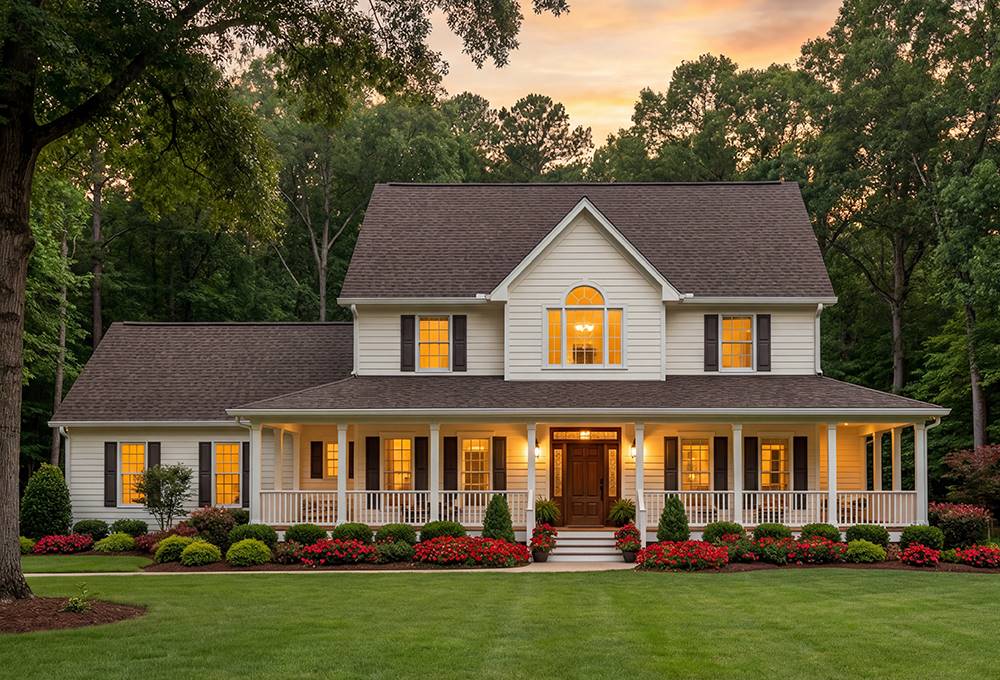

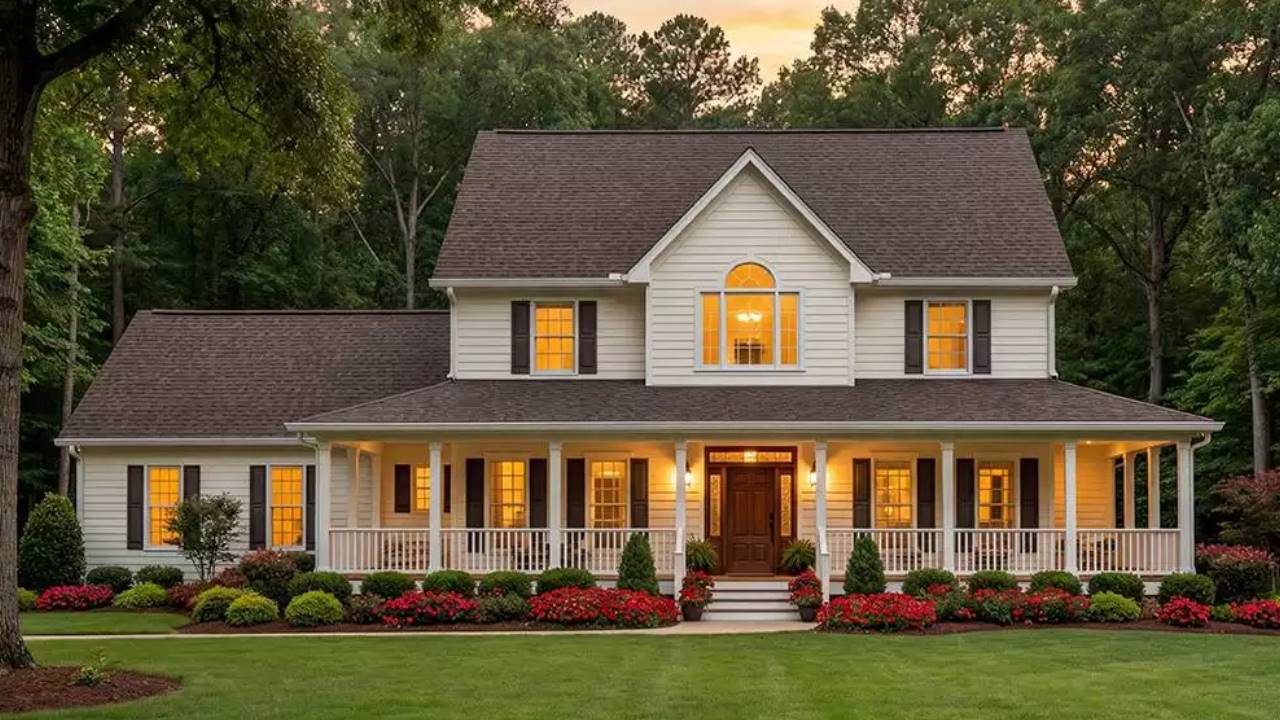

Front Rendering Front Exterior Rear Exterior First Floor Plan Second Floor Plan
See all 5 photos and rear view
Photographs may reflect modified homes
© copyright by designer

Plan: 9289 Charleston

Plan Specification
Total Square Footage: 2,582
Main Level: 1,370
Second Level: 1,212
Bedrooms: 3
Baths: 3 Half: 0
Garages: 2
Width/Depth: 74 ft / 44 ft
Foundation: Basement, Crawl Space, Slab
View typical construction drawing >
© copyright by designer
First Floor Plan:
First Floor Plan
© copyright by designer
Second Floor Plan:
Second Floor Plan
Similar plans: 9701, 8895, 9507
Add to Favorites
Purchase Plans
House Plan Pricing
$1,310.00
$1,510.00
$1,685.00
$2,265.00
Foundation Options
$0.00
$350.00
$350.00
Additional Plan Options
$255.00
Plan Details
General House Information
2
Number of Stories:
74' 0"
Width:
44' 0"
Depth:
Single
Dwelling Number:
None
Bonus Access:
Exterior Style
Mountain
Old House Classics
Vacation
Country
Farmhouse
Southern
Facade
Siding
Number of Rooms
3
Bedrooms:
3
Full Baths:
Finished Square Footage
1,370 Sq. Ft.
Main Level:
1,212 Sq. Ft.
Upper Level:
2,582 Sq. Ft.
Total:
Unfinished Square Footage
720 Sq. Ft.
Garage:
1181 Sq. Ft.
Porch:
GARAGE
Side
Garage Location:
2
Garage Size:
Foundation
Basement
Crawl Space
Slab
House And Ceiling Heights
8
First Floor Ceiling:
8
Second Floor Ceiling:
27' 0"
Maximum House Height:
Framing Information
Stick
Roof Framing:
2x4
Exterior Wall Framing:
Roof Pitch
8/12
Primary:
Roof Load
30
Live:
15
Dead:
Insulation (R)
Per IRC Climate Zones
Number of Rooms
3
Bedrooms:
3
Full Baths:
Key Features
• Attached
• Basement
• Bonus Room
• Crawlspace
• Double Vanity Sink
• Fireplace
• Foyer
• Great Room
• Home Office
• Kitchen Island
• Laundry 1st Fl
• Master Bdrm Upstairs
• Mud Room
• Nook / Breakfast Area
• Open Floor Plan
• Peninsula / Eating Bar
• Rec Room
• Separate Tub and Shower
• Side-entry
• Slab
• Storage Space
• Suited for corner lot
• Suited for view lot
• Walk-in Closet
• Wraparound Porch
