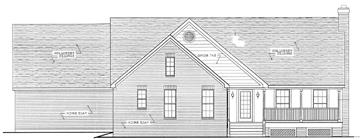

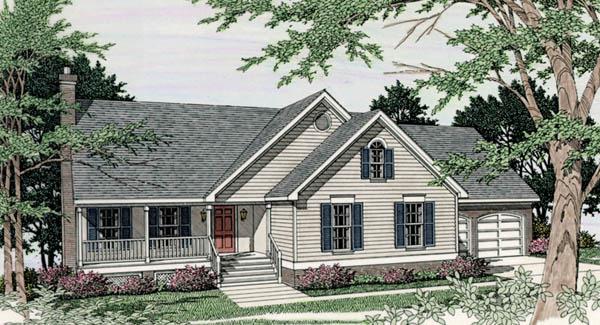

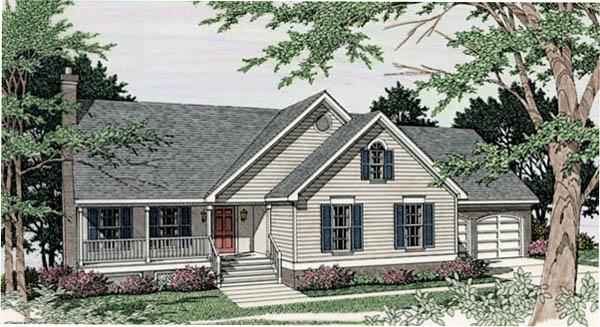

Front Rendering Front Exterior Rear Exterior First Floor Plan Second Floor Plan
See all 5 photos and rear view
Photographs may reflect modified homes
© copyright by designer

Plan: 9202 Dunmore

Plan Specification
Total Square Footage: 2,042
Main Level: 1,670
Second Level: 372
Bedrooms: 3
Baths: 2 Half: 0
Garages: 2
Width/Depth: 69 ft / 51 ft
Foundation: Basement, Crawl Space, Slab
View typical construction drawing >
© copyright by designer
First Floor Plan:
First Floor Plan
© copyright by designer
Second Floor Plan:
Second Floor Plan
Similar plans: 9813, 9616
Add to Favorites
Purchase Plans
House Plan Pricing
$1,260.00
$1,455.00
$1,630.00
$2,215.00
Foundation Options
$0.00
$350.00
$350.00
Plan Details
General House Information
1.5
Number of Stories:
69' 2"
Width:
51' 3"
Depth:
Single
Dwelling Number:
None
Bonus Access:
Exterior Style
Old House Classics
Vacation
Cottage
Country
Southern
Facade
Brick/Siding
Number of Rooms
3
Bedrooms:
2
Full Baths:
Finished Square Footage
1,670 Sq. Ft.
Main Level:
372 Sq. Ft.
Upper Level:
2,042 Sq. Ft.
Total:
Unfinished Square Footage
565 Sq. Ft.
Garage:
392 Sq. Ft.
Porch:
GARAGE
Front
Garage Location:
2
Garage Size:
Foundation
Basement
Crawl Space
Slab
House And Ceiling Heights
8
First Floor Ceiling:
9
Second Floor Ceiling:
23' 0"
Maximum House Height:
Framing Information
Stick
Roof Framing:
2x4
Exterior Wall Framing:
Roof Pitch
10/12
Primary:
Roof Load
30
Live:
15
Dead:
Insulation (R)
Per IRC Climate Zones
Number of Rooms
3
Bedrooms:
2
Full Baths:
Key Features
• Attached
• Basement
• Covered Front Porch
• Covered Rear Porch
• Crawlspace
• Double Vanity Sink
• Fireplace
• Front-entry
• Great Room
• Laundry 1st Fl
• Loft / Balcony
• Master Bdrm Main Floor
• Open Floor Plan
• Peninsula / Eating Bar
• Separate Tub and Shower
• Slab
• Split Bedrooms
• Storage Space
• Suited for view lot
• Unfinished Space
• Walk-in Closet
