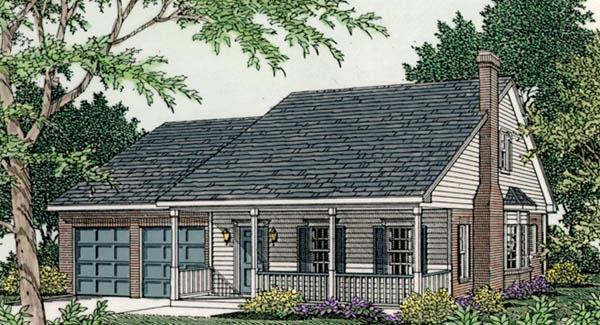

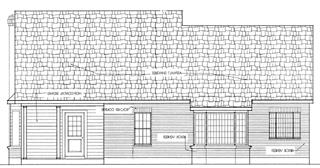

Front Rendering Front Exterior Rear Exterior First Floor Plan Second Floor Plan
See all 5 photos and rear view
Photographs may reflect modified homes
© copyright by designer

Plan: 91006 Raven

Plan Specification
Total Square Footage: 2,165
Main Level: 1,467
Second Level: 698
Bedrooms: 4
Baths: 3 Half: 0
Garages: 2
Width/Depth: 46 ft / 53 ft
Foundation: Basement, Crawl Space, Slab
View typical construction drawing >
© copyright by designer
First Floor Plan:
First Floor Plan
© copyright by designer
Second Floor Plan:
Second Floor Plan
Similar plans: 9425, 9512, 9519, 9426
Add to Favorites
Purchase Plans
House Plan Pricing
$1,360.00
$1,705.00
$1,880.00
$2,315.00
Foundation Options
$0.00
$350.00
$350.00
Plan Details
General House Information
1.5
Number of Stories:
46' 6"
Width:
53' 6"
Depth:
Single
Dwelling Number:
None
Bonus Access:
Exterior Style
Old House Classics
Country
Southern
Traditional
Facade
Brick/Siding
Number of Rooms
4
Bedrooms:
3
Full Baths:
Finished Square Footage
1,467 Sq. Ft.
Main Level:
698 Sq. Ft.
Upper Level:
2,165 Sq. Ft.
Total:
Unfinished Square Footage
494 Sq. Ft.
Garage:
190 Sq. Ft.
Porch:
GARAGE
Front
Garage Location:
2
Garage Size:
Foundation
Basement
Crawl Space
Slab
House And Ceiling Heights
8
First Floor Ceiling:
24' 0"
Maximum House Height:
Framing Information
Stick
Roof Framing:
2x6
Exterior Wall Framing:
Roof Pitch
7/12
Primary:
Roof Load
30
Live:
15
Dead:
Insulation (R)
Per IRC Climate Zones
Number of Rooms
4
Bedrooms:
3
Full Baths:
Key Features
• Attached
• Basement
• Covered Front Porch
• Covered Rear Porch
• Crawlspace
• Fireplace
• Front-entry
• Great Room
• Laundry 1st Fl
• Master Bdrm Main Floor
• Slab
• Storage Space
• Suited for narrow lot
• Walk-in Closet
