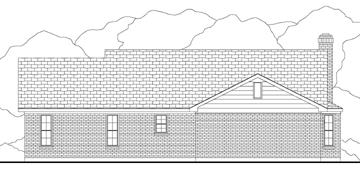

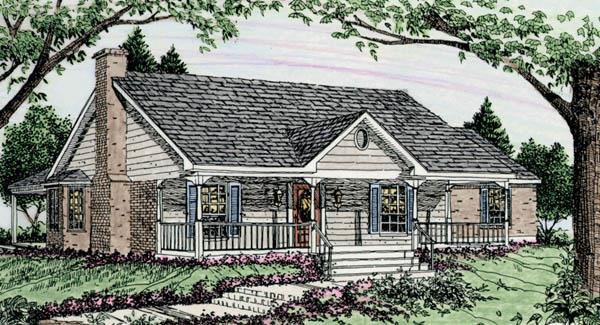

Front Rendering Rear Exterior First Floor Plan
See all 3 photos and rear view
Photographs may reflect modified homes
© copyright by designer

Plan: 86155 Smithfield

Plan Specification
Total Square Footage: 1,385
Main Level: 1,385
Bedrooms: 3
Baths: 2 Half: 0
Garages: 0
Width/Depth: 48 ft / 60 ft
Foundation: Basement, Crawl Space, Slab
© copyright by designer
First Floor Plan:
First Floor Plan
Similar plans: 9610, 9614, 9611, 9504
Add to Favorites
Purchase Plans
House Plan Pricing
$1,060.00
$1,260.00
$1,435.00
$1,965.00
Foundation Options
$0.00
$350.00
$350.00
Additional Plan Options
$255.00
$295.00
Plan Details
General House Information
1
Number of Stories:
48' 0"
Width:
60' 4"
Depth:
Single
Dwelling Number:
None
Bonus Access:
Exterior Style
Old House Classics
Cottage
Country
Traditional
Facade
Brick/Siding
Number of Rooms
3
Bedrooms:
2
Full Baths:
Finished Square Footage
1,385 Sq. Ft.
Main Level:
1,385 Sq. Ft.
Total:
Unfinished Square Footage
420 Sq. Ft.
Garage:
195 Sq. Ft.
Porch:
GARAGE
0
Garage Size:
Foundation
Basement
Crawl Space
Slab
House And Ceiling Heights
8
First Floor Ceiling:
17' 0"
Maximum House Height:
Framing Information
Stick
Roof Framing:
2x4
Exterior Wall Framing:
Roof Pitch
7/12
Primary:
Roof Load
30
Live:
15
Dead:
Insulation (R)
Per IRC Climate Zones
Number of Rooms
3
Bedrooms:
2
Full Baths:
Key Features
• Basement
• Carport
• Covered Front Porch
• Crawlspace
• Fireplace
• Front Porch
• Great Room
• Nook / Breakfast Area
• Open Floor Plan
• Peninsula / Eating Bar
• Slab
• Storage Space
• Suited for corner lot
• Vaulted Ceilings
• Walk-in Closet
• Walk-in Pantry
