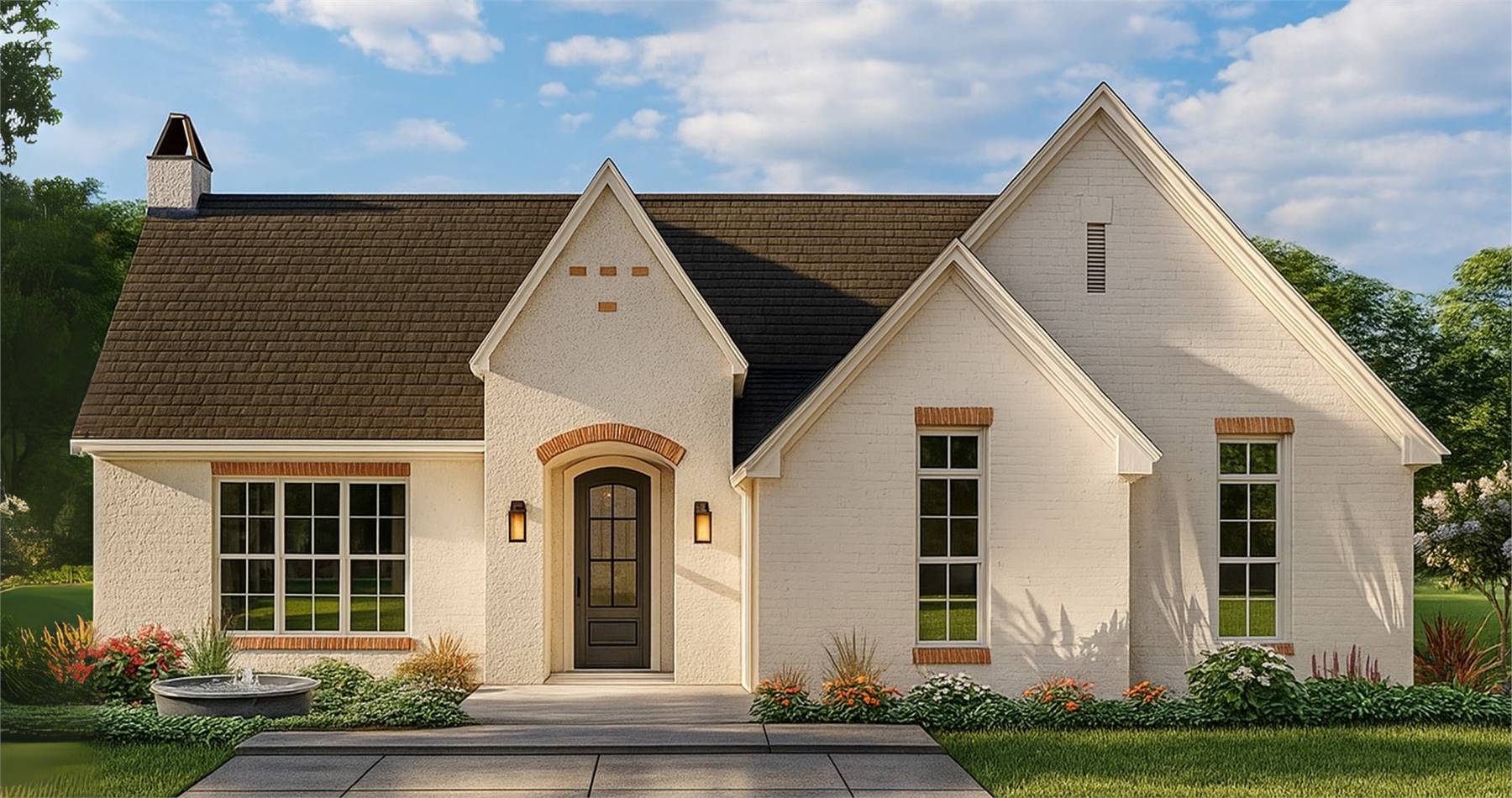

Front View Front Rendering Front View Front rendering Left Elevation Rear rendering Rear rendering Right Elevation Floor Plan
See all 10 photos and rear view
Photographs may reflect modified homes
© copyright by designer

Plan: 1976 Redding

Plan Specification
Total Square Footage: 1,769
Main Level: 1,769
Bedrooms: 3
Baths: 2 Half: 0
Garages: 2
Width/Depth: 51 ft / 71 ft
Foundation: Crawl Space Option, Slab
View typical construction drawing >
© copyright by designer
Floor Plan:
Floor Plan
Similar plans: 0508, 1927, 1770, 0870
Add to Favorites
Purchase Plans
House Plan Pricing
$1,310.00
$1,800.00
$2,280.00
Foundation Options
$0.00
$350.00
Additional Plan Options
$325.00
Plan Details
General House Information
1
Number of Stories:
51' 0"
Width:
71' 8"
Depth:
Single
Dwelling Number:
None
Bonus Access:
Exterior Style
Budget
Builders
Texas
Cottage
French Country
Ranch
Number of Rooms
3
Bedrooms:
2
Full Baths:
Finished Square Footage
1,769 Sq. Ft.
Main Level:
1,769 Sq. Ft.
Total:
Unfinished Square Footage
510 Sq. Ft.
Garage:
44 Sq. Ft.
Storage:
165 Sq. Ft.
Porch:
GARAGE
Rear
Garage Location:
2
Garage Size:
Foundation
Crawl Space Option
Slab
House And Ceiling Heights
10'
First Floor Ceiling:
21' 2"
Maximum House Height:
Framing Information
Stick
Roof Framing:
2x4
Exterior Wall Framing:
Roof Pitch
12/12
Primary:
15/12
Secondary:
5/12
Teritary:
Insulation (R)
Per IRC Climate Zones
Number of Rooms
3
Bedrooms:
2
Full Baths:
Key Features
• Arches
• Attached
• Covered Rear Porch
• Crawlspace
• Double Vanity Sink
• Family Room
• Fireplace
• Foyer
• Laundry 1st Fl
• Master Bdrm Main Floor
• Mud Room
• Nook / Breakfast Area
• Peninsula / Eating Bar
• Rear Porch
• Rear-entry
• Separate Tub and Shower
• Side-entry
• Slab
• Split Bedrooms
• Storage Space
• Suited for corner lot
• Suited for narrow lot
• Vaulted Ceilings
• Walk-in Closet
