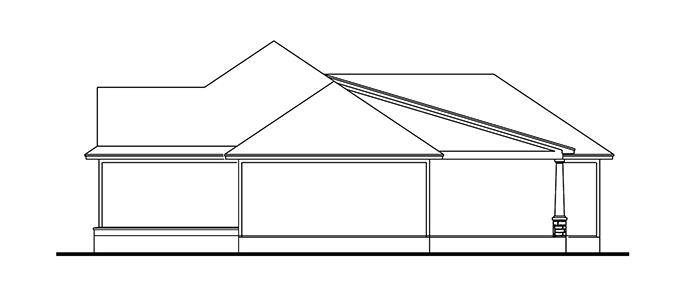

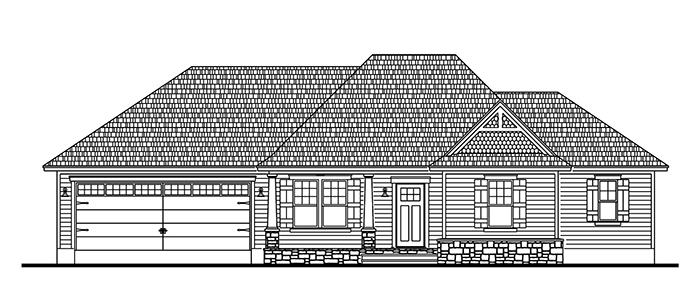

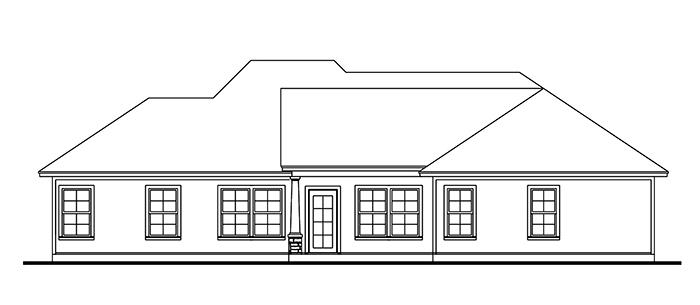

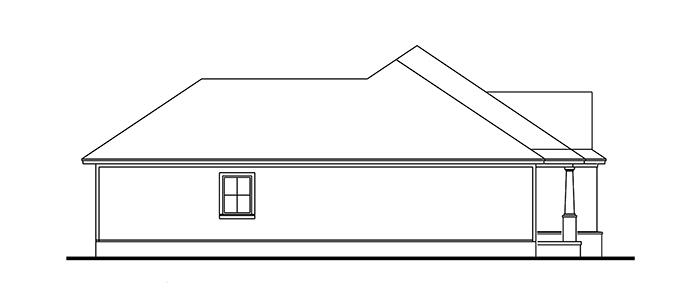

Front Rendering Front Elevation Rear Elevation Left Side Elevation Right Side Elevation Floor Plan
See all 6 photos and rear view
Photographs may reflect modified homes
© copyright by designer

Plan: 1770 Bellvue

Plan Specification
Total Square Footage: 1,631
Main Level: 1,631
Bedrooms: 3
Baths: 2 Half: 0
Garages: 2
Width/Depth: 62 ft / 52 ft
Foundation: Slab
© copyright by designer
Floor Plan:
Floor Plan
Similar plans: 1814, 0314
Add to Favorites
Purchase Plans
House Plan Pricing
$1,160.00
$1,355.00
$1,530.00
$2,065.00
Foundation Options
$0.00
Additional Plan Options
$295.00
Plan Details
General House Information
1
Number of Stories:
62' 0"
Width:
52' 6"
Depth:
Single
Dwelling Number:
Exterior Style
Budget
Builders
Old House Classics
Cottage
Country
Craftsman
French Country
Ranch
Southern
Traditional
Facade
Siding
Number of Rooms
3
Bedrooms:
2
Full Baths:
Finished Square Footage
1,631 Sq. Ft.
Main Level:
1,631 Sq. Ft.
Total:
Unfinished Square Footage
470 Sq. Ft.
Garage:
302 Sq. Ft.
Porch:
GARAGE
Front
Garage Location:
2
Garage Size:
Foundation
Slab
House And Ceiling Heights
9
First Floor Ceiling:
20' 0"
Maximum House Height:
Framing Information
Stick
Roof Framing:
2x4
Exterior Wall Framing:
Roof Pitch
8/12
Primary:
12/12
Secondary:
12/12
Gable:
3.56/12
Porch:
Insulation (R)
Per IRC Climate Zones
Number of Rooms
3
Bedrooms:
2
Full Baths:
Key Features
• Attached
• Covered Front Porch
• Covered Rear Porch
• Crawlspace
• Double Vanity Sink
• Family Room
• Fireplace
• Foyer
• Front Porch
• Front-entry
• Great Room
• His and Hers Master Closets
• Laundry 1st Fl
• Master Bdrm Main Floor
• Nook / Breakfast Area
• Open Floor Plan
• Peninsula / Eating Bar
• Rear Porch
• Separate Tub and Shower
• Slab
• Split Bedrooms
• Walk-in Closet
