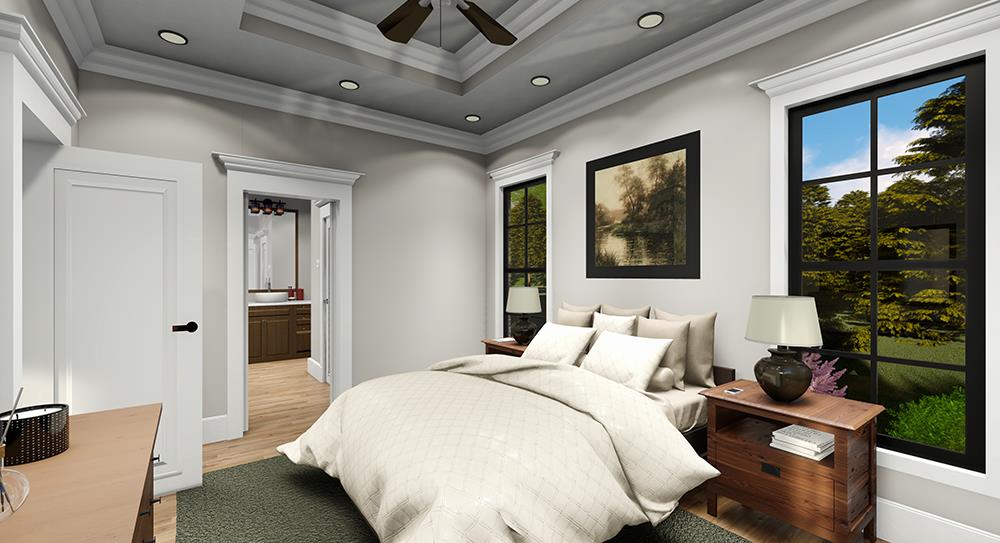

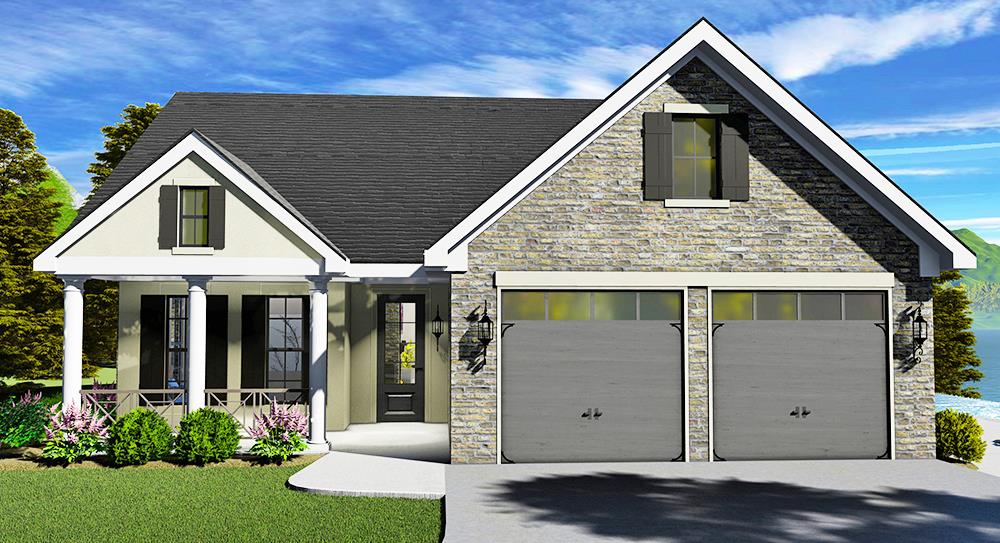

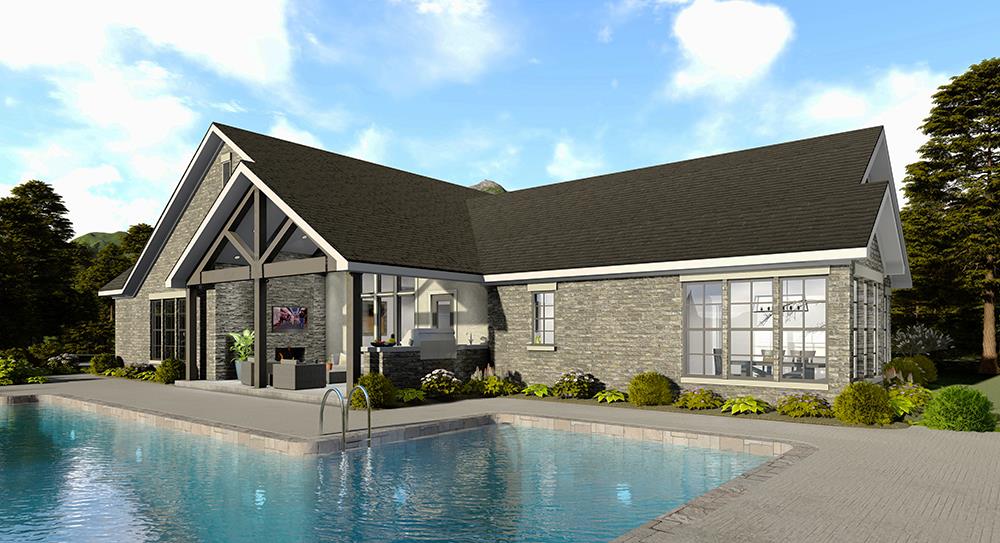

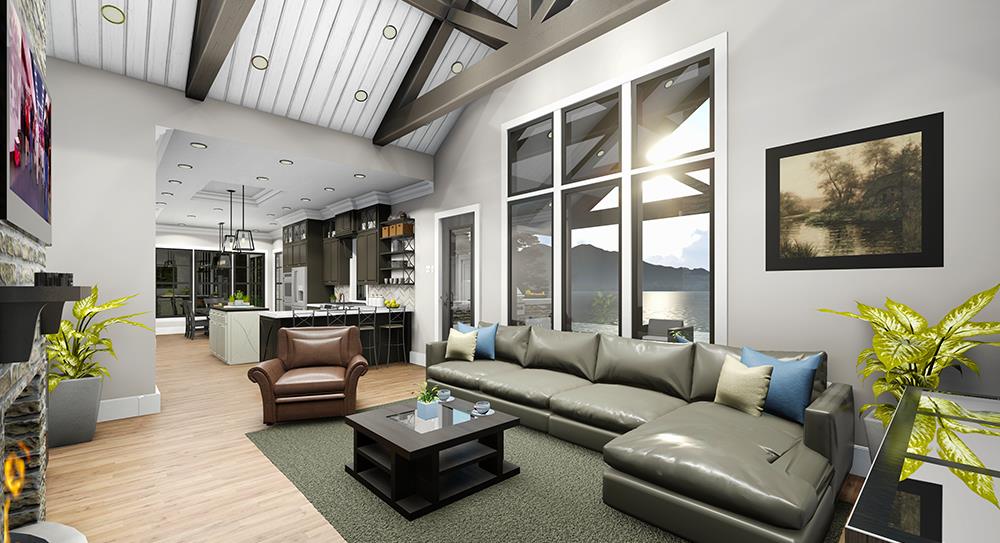

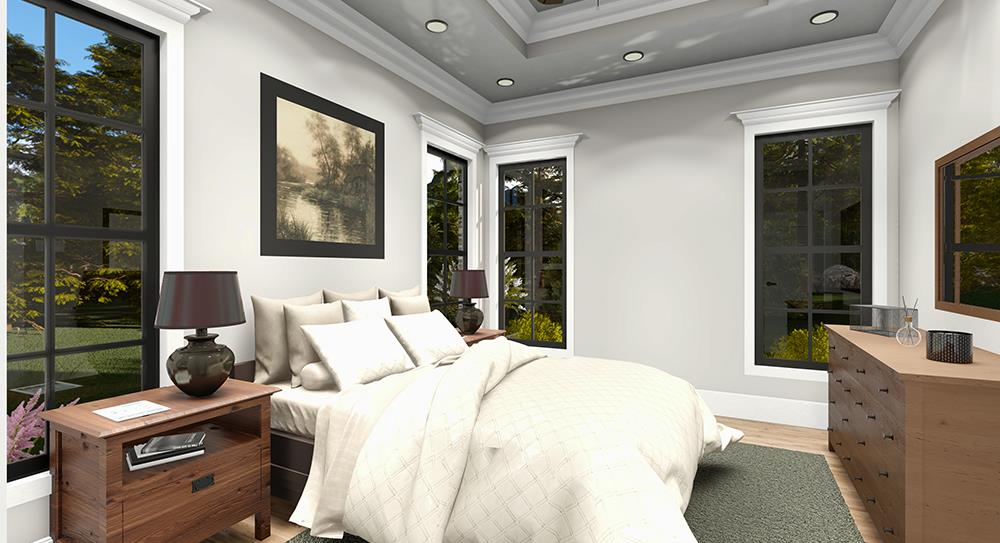

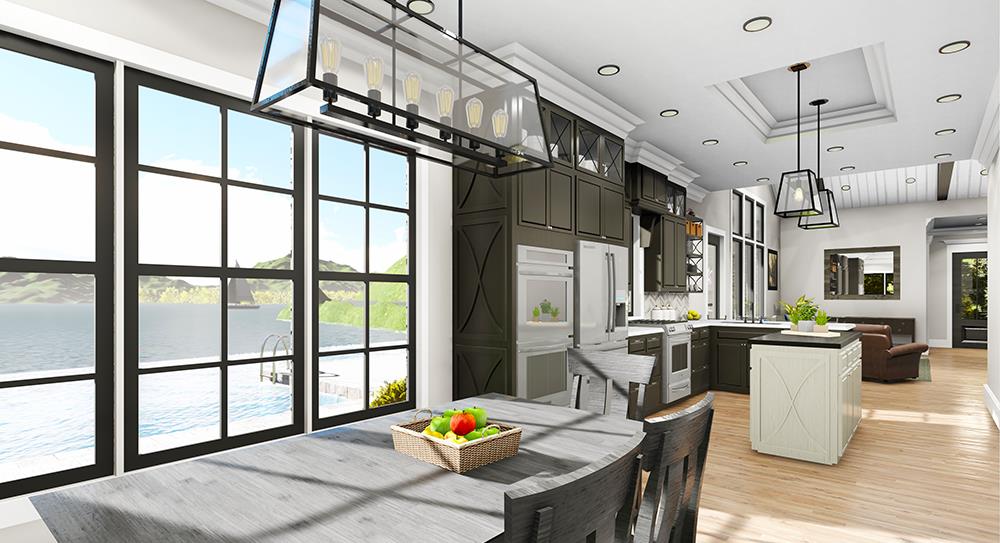

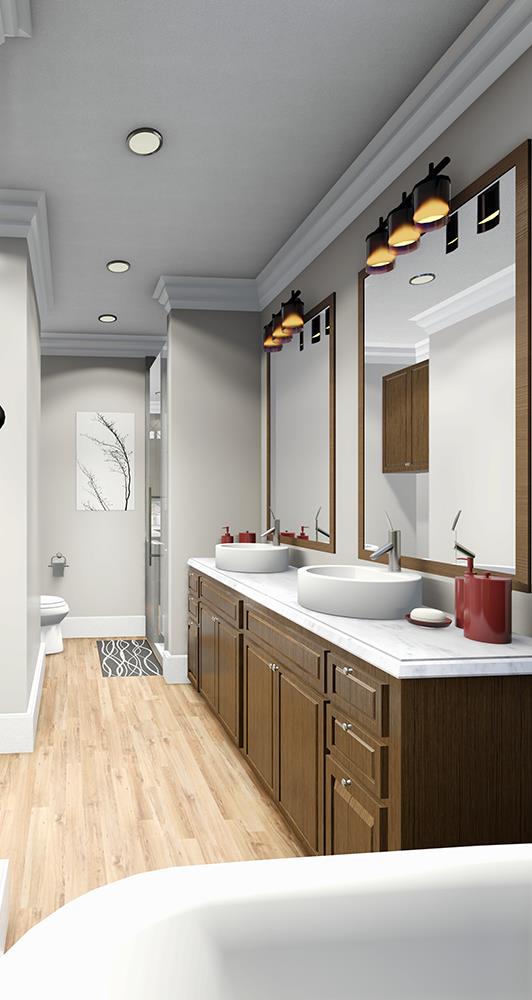

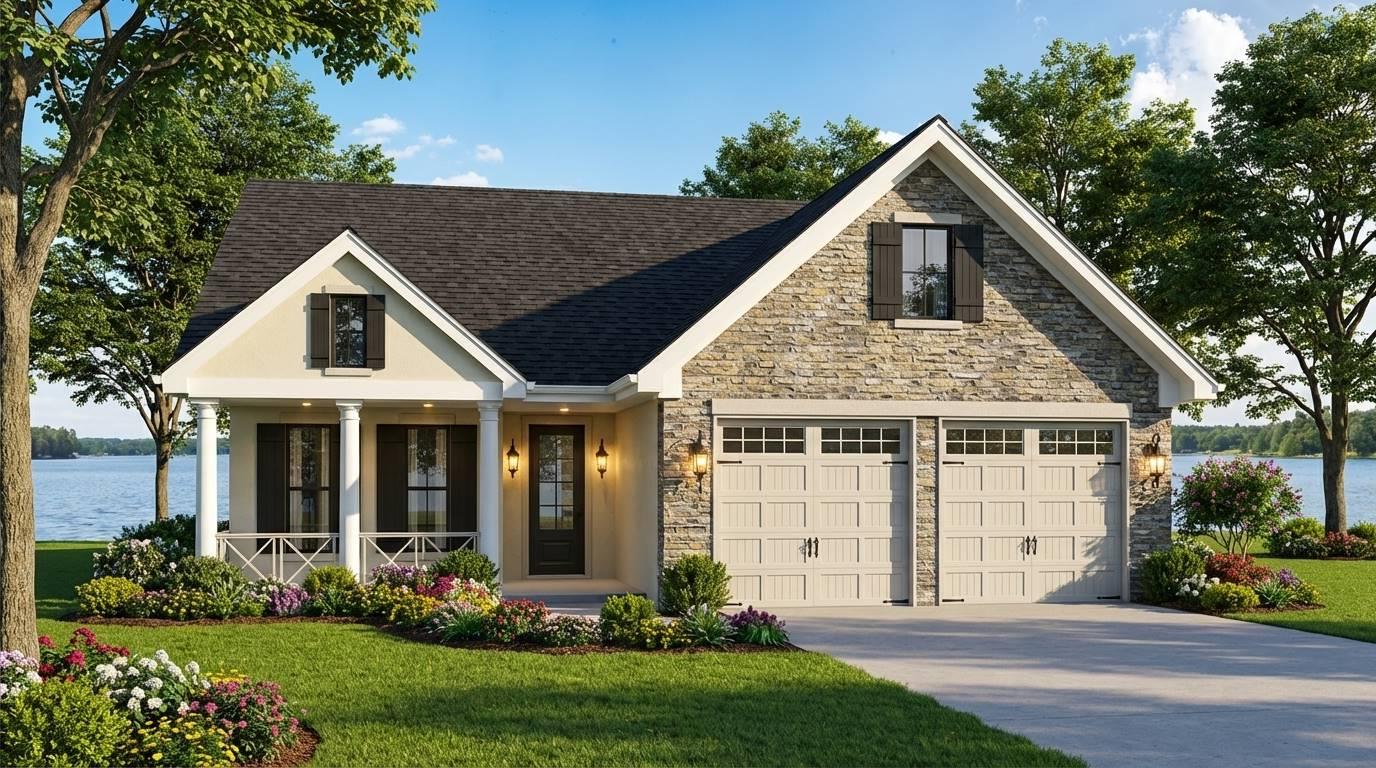

Front Elevation Dining/Living Left Angle Arial View Arial Rear View Left Side Elevation Left Side Elevation Right Side Elevation Kitchen Master Bedroom Master Bedroom Master Bath Master Bath Living Room Living Room Left Side Elevation 2 Floor Plan
See all 16 photos and rear view
Photographs may reflect modified homes
© copyright by designer

Plan: 17100 Auburndale

Plan Specification
Total Square Footage: 1,725
Main Level: 1,725
Bedrooms: 3
Baths: 2 Half: 0
Garages: 2
Width/Depth: 45 ft / 76 ft
Foundation: Crawl Space Option, Slab
View typical construction drawing >
© copyright by designer
Floor Plan:
Floor Plan
Similar plans: 1510, 1770, 0870, 0838
Add to Favorites
Purchase Plans
House Plan Pricing
$1,160.00
$1,355.00
$1,530.00
$2,065.00
Foundation Options
$0.00
$350.00
Additional Plan Options
$295.00
$255.00
Plan Details
General House Information
1
Number of Stories:
45' 4"
Width:
76' 0"
Depth:
Single
Dwelling Number:
Exterior Style
Budget
Builders
Tennessee
Vacation
Cottage
Country
Craftsman
Farmhouse
French Country
Ranch
Southern
Traditional
Facade
Siding
Number of Rooms
3
Bedrooms:
2
Full Baths:
Finished Square Footage
1,725 Sq. Ft.
Main Level:
1,725 Sq. Ft.
Total:
Unfinished Square Footage
548 Sq. Ft.
Garage:
448 Sq. Ft.
Porch:
GARAGE
Front
Garage Location:
2
Garage Size:
Foundation
Crawl Space Option
Slab
House And Ceiling Heights
10
First Floor Ceiling:
23' 5"
Maximum House Height:
Framing Information
Stick
Roof Framing:
2x4
Exterior Wall Framing:
Roof Pitch
8/12
Primary:
Insulation (R)
Per IRC Climate Zones
Number of Rooms
3
Bedrooms:
2
Full Baths:
Key Features
• Attached
• Covered Front Porch
• Covered Rear Porch
• Crawlspace
• Fireplace
• Foyer
• Front Porch
• Front-entry
• Great Room
• His and Hers Master Closets
• Home Office
• Kitchen Island
• Laundry 1st Fl
• Master Bdrm Main Floor
• Nook / Breakfast Area
• Open Floor Plan
• Peninsula / Eating Bar
• Separate Tub and Shower
• Slab
• Split Bedrooms
• Suited for narrow lot
• Suited for view lot
• Vaulted Ceilings
• Walk-in Closet
