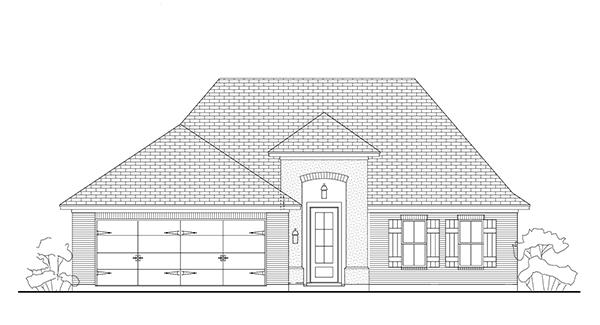

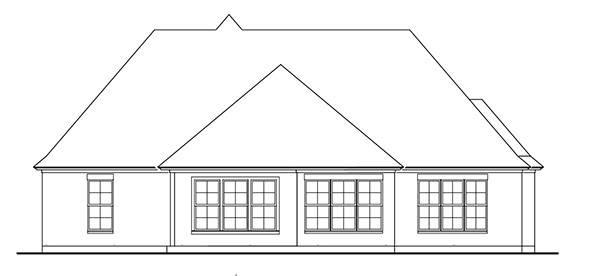

See all 5 photos and rear view
Photographs may reflect modified homes
© copyright by designer
Plan: 16117
Plan Specification
Total Square Footage:
2,051
Main Level:
2,051
Bedrooms:
3
Baths:
2 Half: 0
Garages:
3
Width/Depth:
58 ft / 73 ft
View typical construction drawing >
© copyright by designer
Floor Plan:
Add to Favorites
This plan is not available for online purchasing. Call 1-800-742-6672 for more information.
Plan Details
General House Information
1
Number of Stories:
58' 0"
Width:
73' 11"
Depth:
Single
Dwelling Number:
Exterior Style
Builders
Cottage
Country
Craftsman
Farmhouse
French Country
Ranch
Southern
Traditional
Facade
Brick
Stucco
Number of Rooms
3
Bedrooms:
2
Full Baths:
Finished Square Footage
2,051 Sq. Ft.
Main Level:
2,051 Sq. Ft.
Total:
GARAGE
Side
Garage Location:
3
Garage Size:
House And Ceiling Heights
10 & 11
First Floor Ceiling:
Framing Information
Stick
Roof Framing:
2x4
Exterior Wall Framing:
Roof Pitch
14/12
Primary:
10/12
Secondary:
Insulation (R)
Per IRC Climate Zones
Number of Rooms
3
Bedrooms:
2
Full Baths:
Key Features
• Attached
• Covered Front Porch
• Covered Rear Porch
• Dining Room
• Double Vanity Sink
• Fireplace
• Foyer
• Front Porch
• His and Hers Master Closets
• Home Office
• Kitchen Island
• Laundry 1st Fl
• Master Bdrm Main Floor
• Mud Room
• Nook / Breakfast Area
• Open Floor Plan
• Oversized
• Peninsula / Eating Bar
• Rear Porch
• Separate Tub and Shower
• Side-entry
• Slab
• Split Bedrooms
• Storage Space
• Suited for narrow lot
• Suited for view lot
• Vaulted Ceilings
• Walk-in Closet
Plan: 16117, 1 story, 2,051 total square footage
