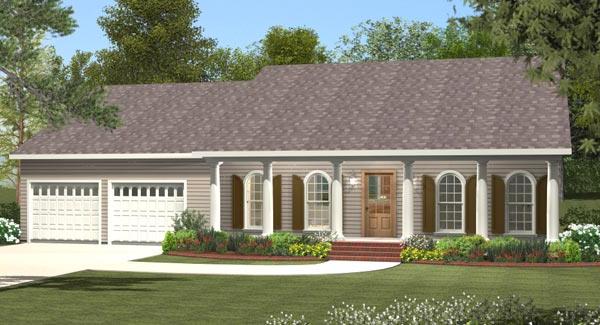

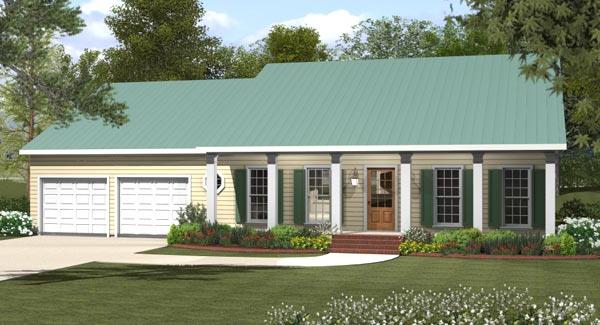

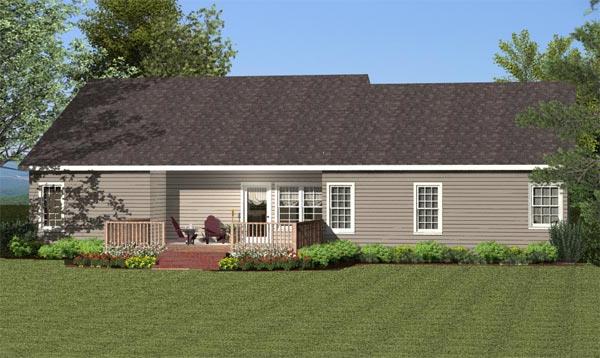

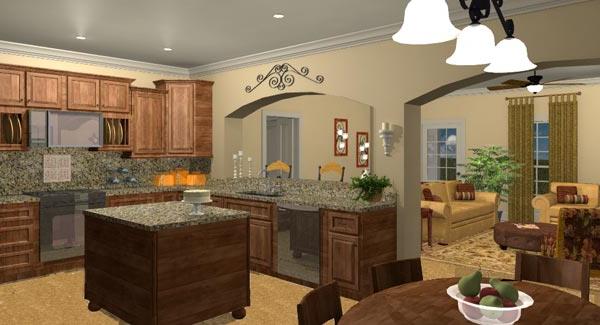

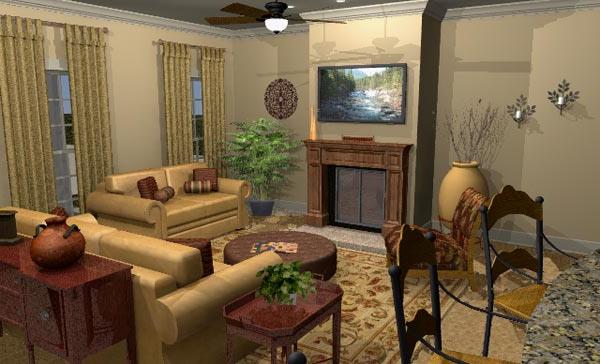

Front Exterior Front Exterior Rear Rendering Kitchen Living Room First Floor Plan
See all 6 photos and rear view
Photographs may reflect modified homes
© copyright by designer

Plan: 0838 Cottageville

Plan Specification
Total Square Footage: 1,633
Main Level: 1,633
Bedrooms: 3
Baths: 2 Half: 0
Garages: 2
Width/Depth: 60 ft / 44 ft
Foundation: Basement Option, Crawl Space, Slab
View typical construction drawing >
© copyright by designer
First Floor Plan:
First Floor Plan
Similar plans: 9309, 0314
Add to Favorites
Purchase Plans
House Plan Pricing
$1,260.00
$1,605.00
$1,780.00
$2,165.00
Foundation Options
$0.00
$350.00
$350.00
Additional Plan Options
$300.00
$325.00
Plan Details
General House Information
1
Number of Stories:
60' 0"
Width:
44' 8"
Depth:
Single
Dwelling Number:
None
Bonus Access:
Exterior Style
Old House Classics
Rectangular
Cottage
Southern
Traditional
Facade
Siding
Number of Rooms
3
Bedrooms:
2
Full Baths:
Finished Square Footage
1,633 Sq. Ft.
Main Level:
1,633 Sq. Ft.
Total:
Unfinished Square Footage
486 Sq. Ft.
Garage:
60 Sq. Ft.
Storage:
329 Sq. Ft.
Porch:
GARAGE
Front
Garage Location:
2
Garage Size:
Foundation
Basement Option
Crawl Space
Slab
House And Ceiling Heights
9
First Floor Ceiling:
21' 0"
Maximum House Height:
Framing Information
Stick
Roof Framing:
2x4
Exterior Wall Framing:
Roof Pitch
6/12
Primary:
Roof Load
30
Live:
15
Dead:
Insulation (R)
Per IRC Climate Zones
Number of Rooms
3
Bedrooms:
2
Full Baths:
Key Features
• Arches
• Attached
• Basement
• Country Kitchen
• Covered Front Porch
• Covered Rear Porch
• Crawlspace
• Fireplace
• Front Porch
• Front-entry
• Great Room
• His and Hers Master Closets
• Home Office
• Kitchen Island
• Laundry 1st Fl
• Master Bdrm Main Floor
• Nook / Breakfast Area
• Open Floor Plan
• Peninsula / Eating Bar
• Rear Porch
• Separate Tub and Shower
• Slab
• Split Bedrooms
• Storage Space
• Walk-in Closet
