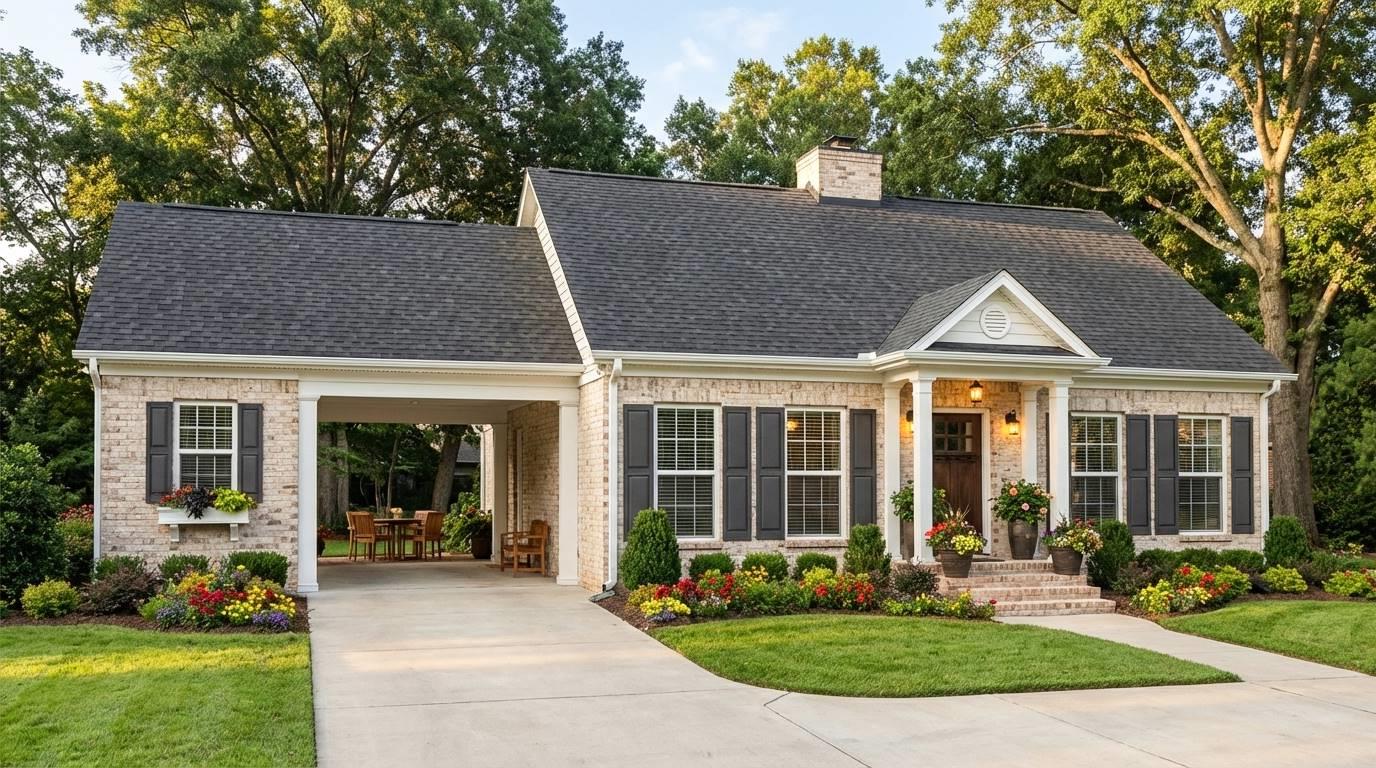

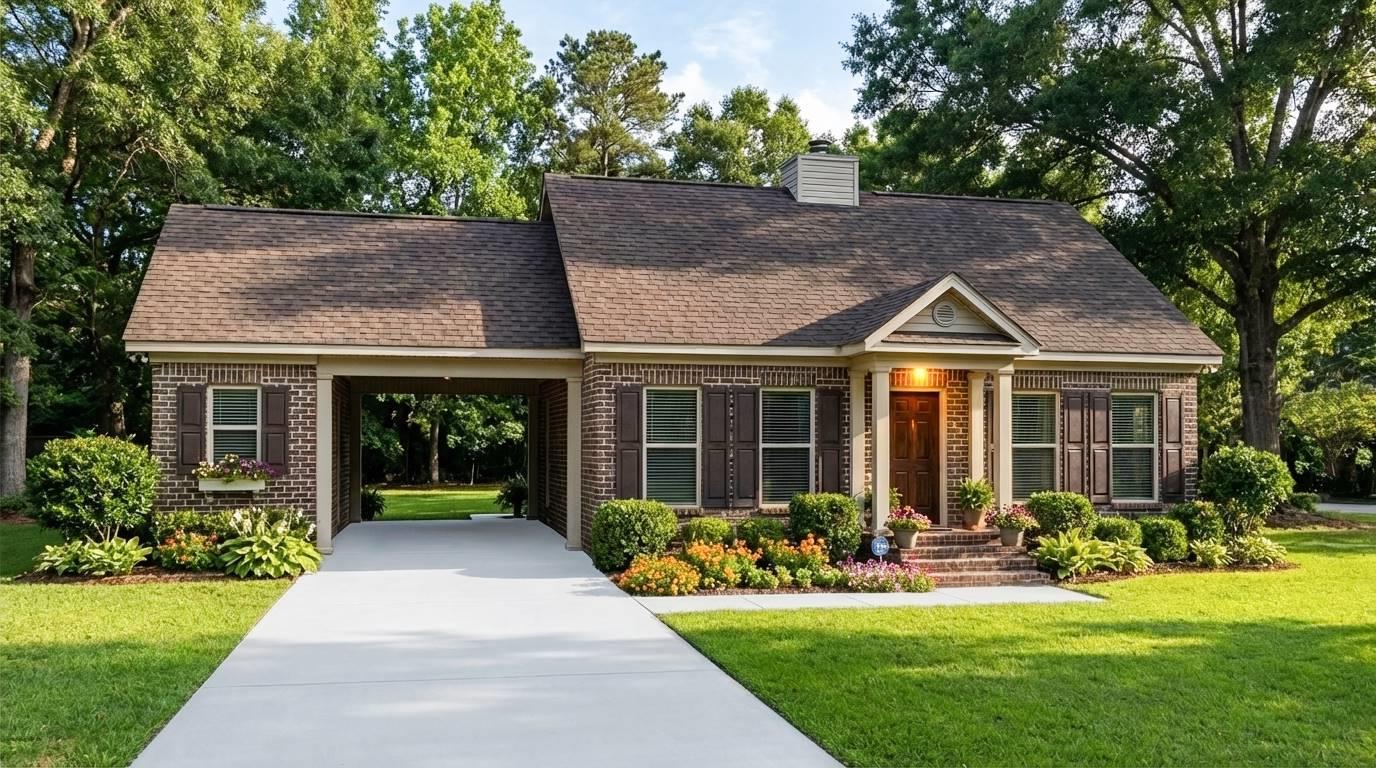

See all 3 photos and rear view
Photographs may reflect modified homes
© copyright by designer

Plan: 0616 Adria

Plan Specification
Total Square Footage: 815
Main Level: 815
Bedrooms: 1
Baths: 1 Half: 0
Garages: 1
Width/Depth: 51 ft / 28 ft
Foundation: Crawl Space Option, Slab
View typical construction drawing >
© copyright by designer
First Floor Plan:
First Floor Plan
Similar plans: 9503, 90016, 9717
Add to Favorites
Purchase Plans
House Plan Pricing
$1,260.00
$1,605.00
$1,780.00
$2,165.00
Foundation Options
$0.00
$350.00
Additional Plan Options
$300.00
$325.00
Plan Details
General House Information
1
Number of Stories:
51' 10"
Width:
28' 0"
Depth:
Single
Dwelling Number:
Exterior Style
Rectangular
Vacation
Cottage
Country
Traditional
Facade
Brick
Number of Rooms
1
Bedrooms:
1
Full Baths:
Finished Square Footage
815 Sq. Ft.
Main Level:
815 Sq. Ft.
Total:
Unfinished Square Footage
214 Sq. Ft.
Garage:
125 Sq. Ft.
Storage:
19 Sq. Ft.
Porch:
GARAGE
Front
Garage Location:
1
Garage Size:
Foundation
Crawl Space Option
Slab
House And Ceiling Heights
9
First Floor Ceiling:
20' 0"
Maximum House Height:
Framing Information
Stick
Roof Framing:
2x4
Exterior Wall Framing:
Roof Pitch
10/12
Primary:
Roof Load
30
Live:
15
Dead:
Insulation (R)
Per IRC Climate Zones
Number of Rooms
1
Bedrooms:
1
Full Baths:
Key Features
• Carport
• Covered Front Porch
• Crawlspace
• Foyer
• Front-entry
• Great Room
• Laundry 1st Fl
• Master Bdrm Main Floor
• Open Floor Plan
• Slab
• Storage Space
• Walk-in Closet
