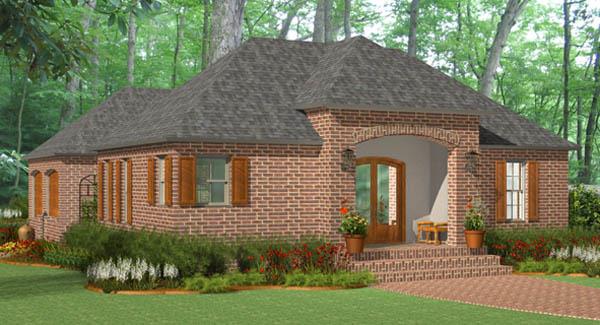

Front Rendering Rear Rendering First Floor Plan

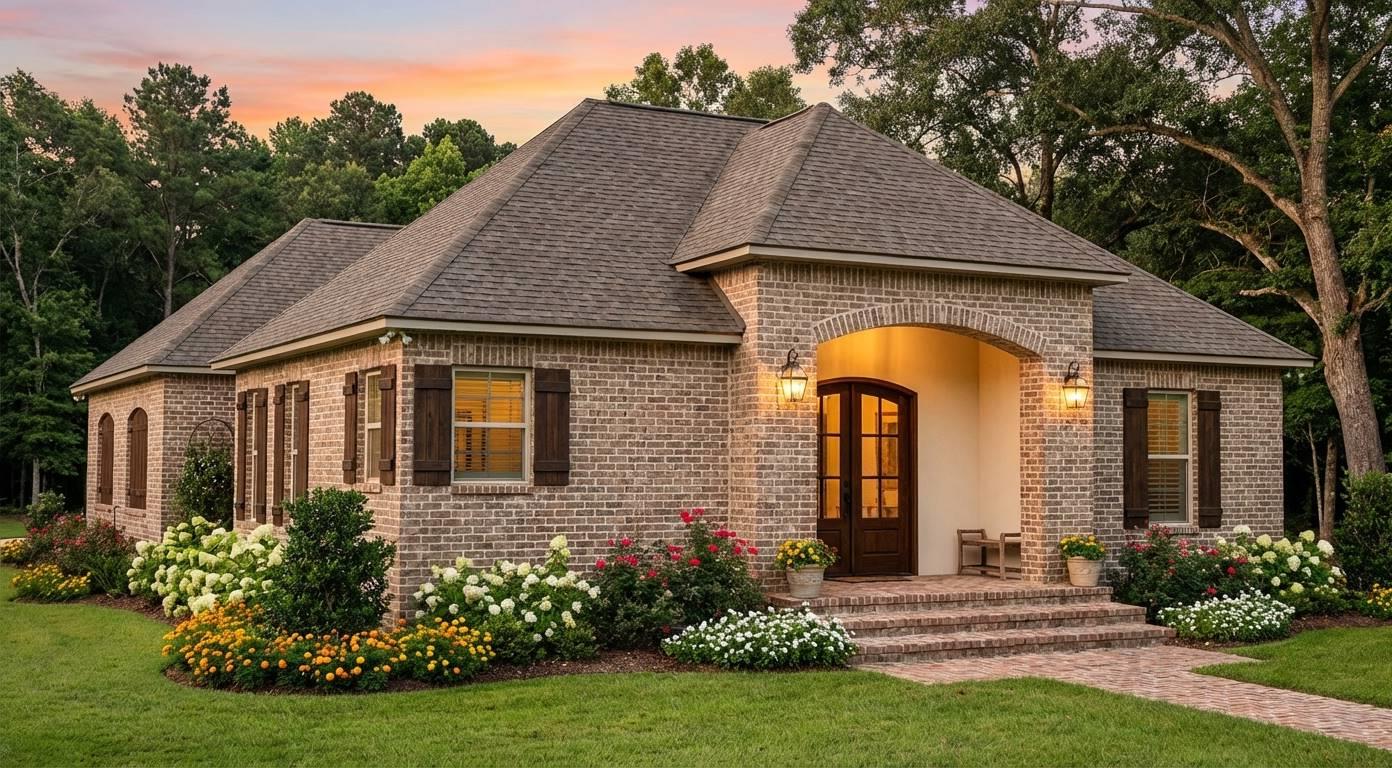

See all 3 photos and rear view
Photographs may reflect modified homes
© copyright by designer

Plan: 0604 Jacqueline

Plan Specification
Total Square Footage: 1,686
Main Level: 1,686
Bedrooms: 3
Baths: 2 Half: 0
Garages: 2
Width/Depth: 43 ft / 69 ft
Foundation: Basement, Crawl Space, Slab
View typical construction drawing >
© copyright by designer
First Floor Plan:
First Floor Plan
Similar plans: 0412, 9721, 0508, 9821
Add to Favorites
Purchase Plans
House Plan Pricing
$1,160.00
$1,355.00
$1,530.00
$2,065.00
Foundation Options
$0.00
$350.00
$350.00
Additional Plan Options
$255.00
Plan Details
General House Information
1
Number of Stories:
43' 0"
Width:
69' 0"
Depth:
Single
Dwelling Number:
Exterior Style
Old House Classics
Cottage
Southern
Traditional
Facade
Brick
Stucco
Number of Rooms
3
Bedrooms:
2
Full Baths:
Finished Square Footage
1,686 Sq. Ft.
Main Level:
1,686 Sq. Ft.
Total:
Unfinished Square Footage
564 Sq. Ft.
Garage:
161 Sq. Ft.
Storage:
237 Sq. Ft.
Porch:
GARAGE
Rear
Garage Location:
2
Garage Size:
Foundation
Basement
Crawl Space
Slab
House And Ceiling Heights
10
First Floor Ceiling:
21' 0"
Maximum House Height:
Framing Information
Stick
Roof Framing:
2x4
Exterior Wall Framing:
Roof Pitch
10/12
Primary:
Roof Load
30
Live:
15
Dead:
Insulation (R)
Per IRC Climate Zones
Number of Rooms
3
Bedrooms:
2
Full Baths:
Key Features
• Attached
• Basement
• Courtyard
• Covered Front Porch
• Covered Rear Porch
• Crawlspace
• Double Vanity Sink
• Family Room
• Fireplace
• Front Porch
• Great Room
• His and Hers Master Closets
• Laundry 1st Fl
• Master Bdrm Main Floor
• Nook / Breakfast Area
• Open Floor Plan
• Peninsula / Eating Bar
• Rear Porch
• Separate Tub and Shower
• Side-entry
• Slab
• Split Bedrooms
• Storage Space
• Suited for corner lot
• Suited for narrow lot
• Walk-in Closet
• Walk-in Pantry
