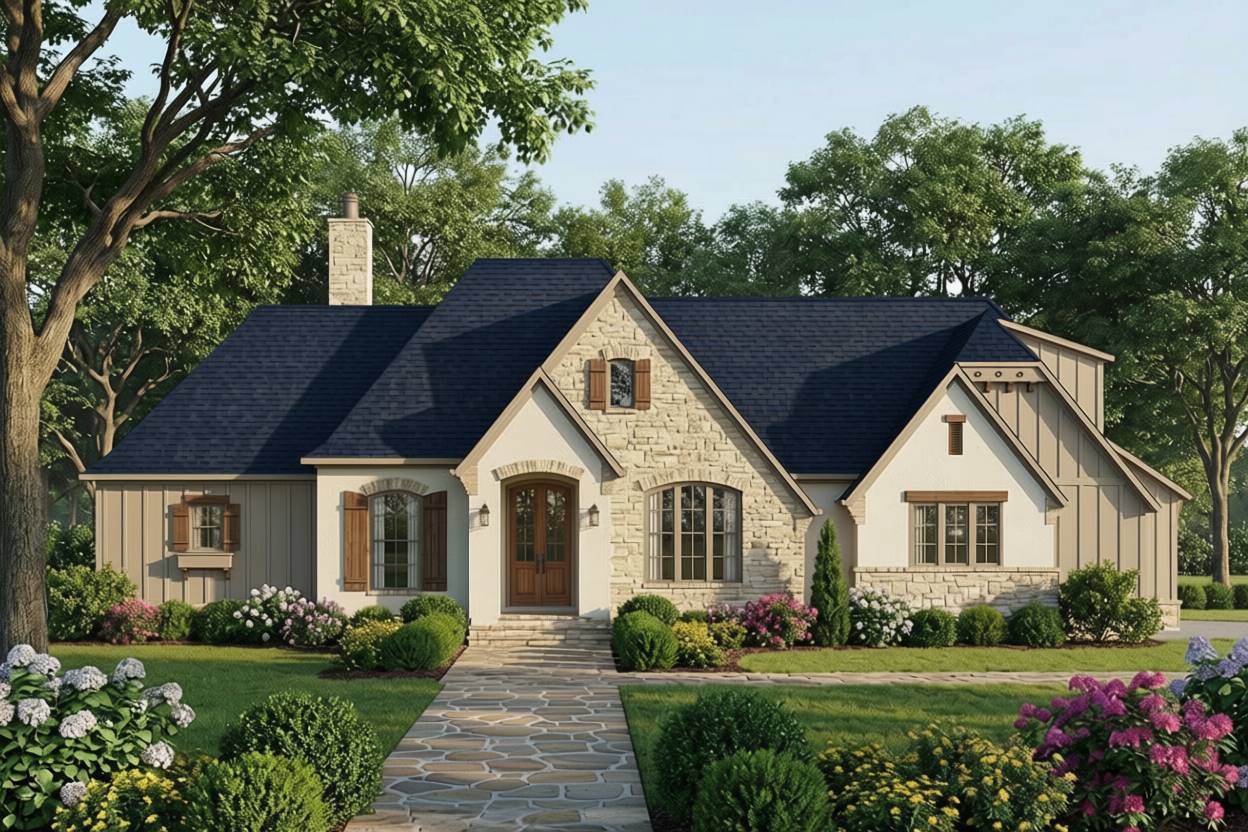

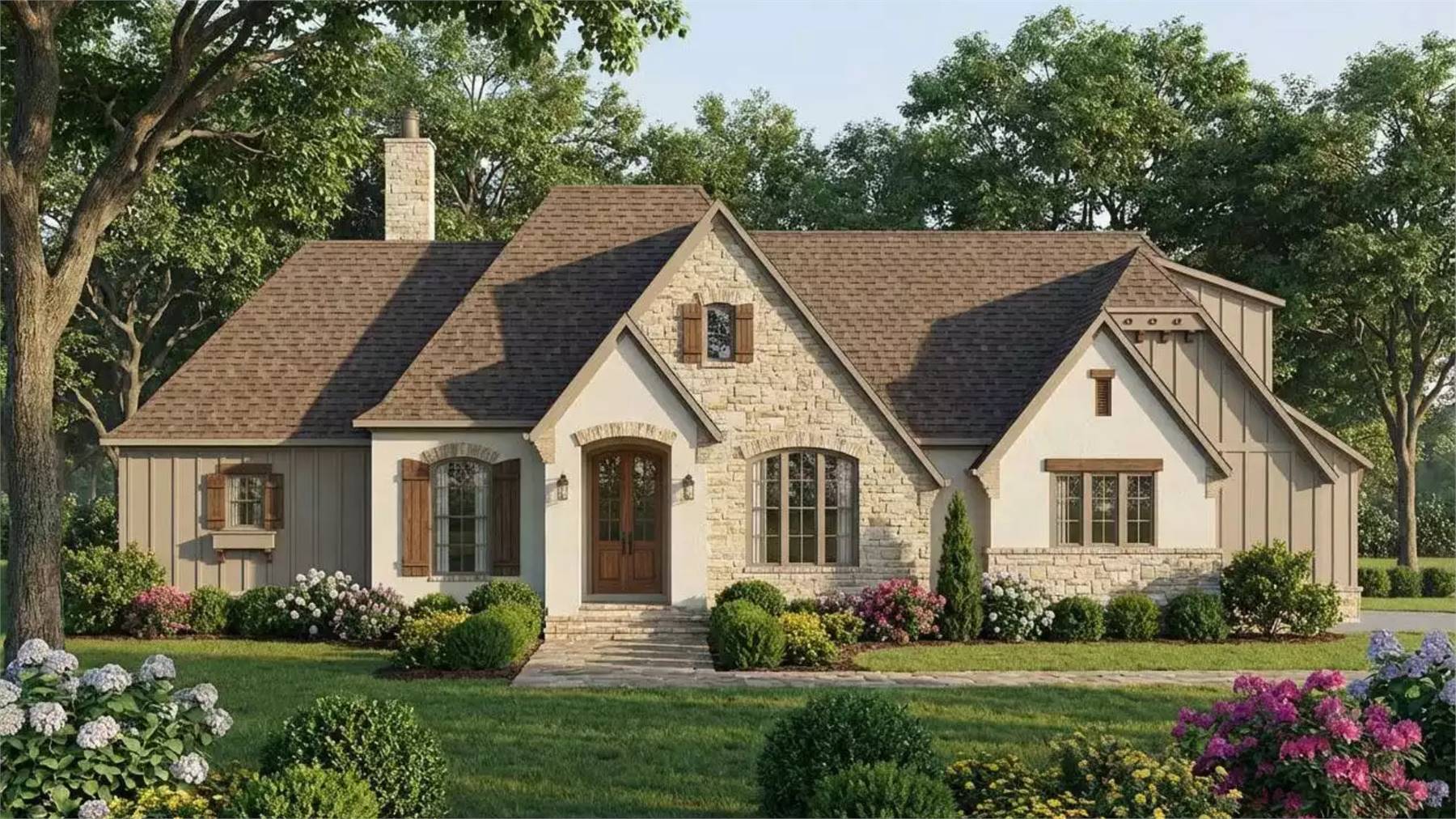

Front Rendering Rear Rendering First Floor Plan Second Floor Plan
See all 4 photos and rear view
Photographs may reflect modified homes
© copyright by designer

Plan: 0504 Stonebridge

Plan Specification
Total Square Footage: 2,059
Main Level: 2,059
Bonus: 308
Bedrooms: 3
Baths: 2 Half: 1
Garages: 2
Width/Depth: 68 ft / 54 ft
Foundation: Basement, Crawl Space, Slab
© copyright by designer
First Floor Plan:
First Floor Plan
© copyright by designer
Second Floor Plan:
Second Floor Plan
Similar plans: 9904, 9314, 0412, 9319
Add to Favorites
Purchase Plans
House Plan Pricing
$1,195.00
$1,290.00
$1,465.00
$2,145.00
Foundation Options
$0.00
$0.00
$0.00
Additional Plan Options
$60.00
$65.00
$255.00
$255.00
Plan Details
General House Information
1.5
Number of Stories:
68' 6"
Width:
54' 0"
Depth:
Single
Dwelling Number:
Exterior Style
Mountain
Old House Classics
Tennessee
European
French Country
Traditional
Facade
Brick
Stucco/Stone
Number of Rooms
3
Bedrooms:
2
Full Baths:
1
Half Baths:
Finished Square Footage
2,059 Sq. Ft.
Main Level:
2,059 Sq. Ft.
Total:
Unfinished Square Footage
532 Sq. Ft.
Garage:
84 Sq. Ft.
Storage:
215 Sq. Ft.
Porch:
308 Sq. Ft.
Bonus Room:
GARAGE
Front
Garage Location:
2
Garage Size:
Foundation
Basement
Crawl Space
Slab
House And Ceiling Heights
9 & 10
First Floor Ceiling:
8
Second Floor Ceiling:
23' 0"
Maximum House Height:
Framing Information
Stick
Roof Framing:
2x4
Exterior Wall Framing:
Roof Pitch
8/12
Primary:
12/15
Secondary:
12/15
Gable:
8/12
Porch:
Roof Load
30
Live:
15
Dead:
Insulation (R)
Per IRC Climate Zones
Number of Rooms
3
Bedrooms:
2
Full Baths:
1
Half Baths:
Key Features
• Arches
• Attached
• Basement
• Bonus Room
• Country Kitchen
• Covered Rear Porch
• Crawlspace
• Dining Room
• Double Vanity Sink
• Family Room
• Fireplace
• Foyer
• Great Room
• Home Office
• Laundry 1st Fl
• Master Bdrm Main Floor
• Nook / Breakfast Area
• Open Floor Plan
• Peninsula / Eating Bar
• Rear Porch
• Separate Tub and Shower
• Side-entry
• Sitting Area
• Slab
• Split Bedrooms
• Suited for corner lot
• Suited for view lot
• Unfinished Space
• Walk-in Closet
• Walk-in Pantry
