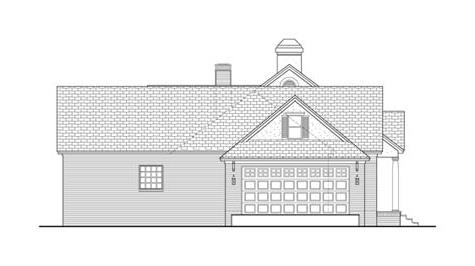

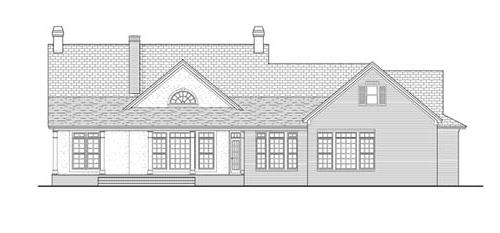

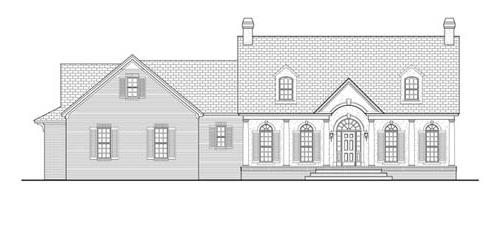

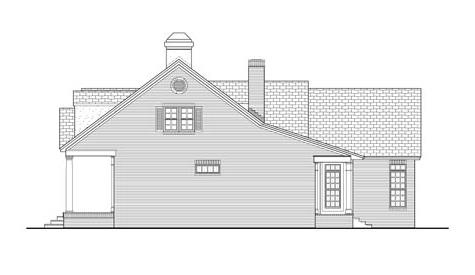

Front Rendering Rear Rendering - Brick Kitchen by KraftMaid Rear Color Rendering Front Rendering Front Elevation Rear Elevation Rear Rendering Left Side Elevation Right Side Elevation Kitchen Front Rendering First Floor Plan Second Floor Plan
See all 14 photos and rear view
Photographs may reflect modified homes
© copyright by designer

Plan: 0411 Southborough Cottage

Plan Specification
Total Square Footage: 2,286
Main Level: 2,286
Bonus: 443
Bedrooms: 3
Baths: 2 Half: 1
Garages: 2
Width/Depth: 76 ft / 55 ft
Foundation: Basement, Crawl Space, Slab
View typical construction drawing >
© copyright by designer

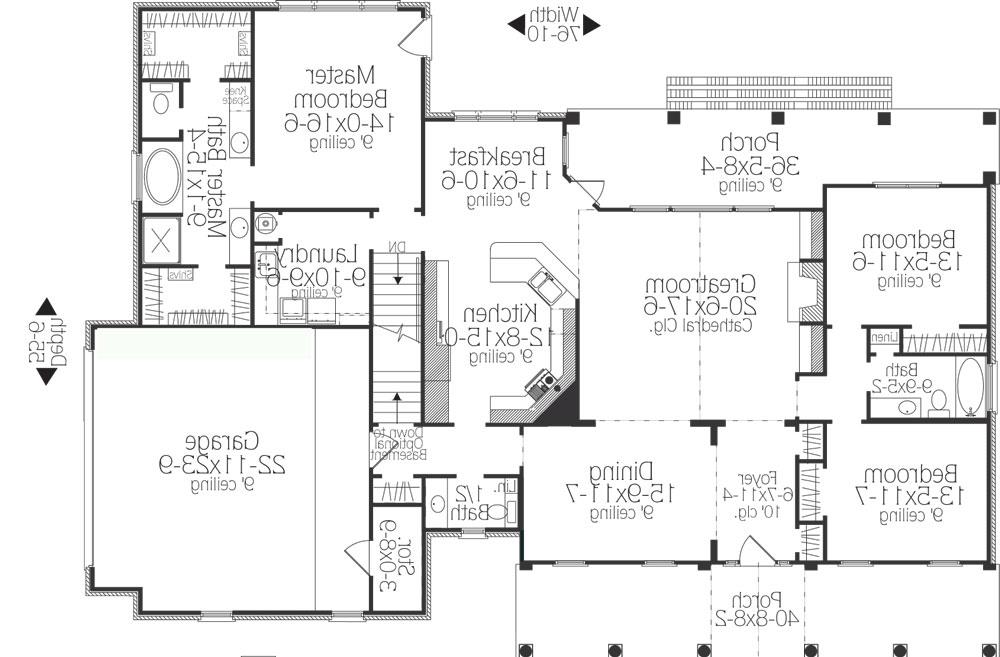

First Floor Plan:
First Floor Plan
© copyright by designer

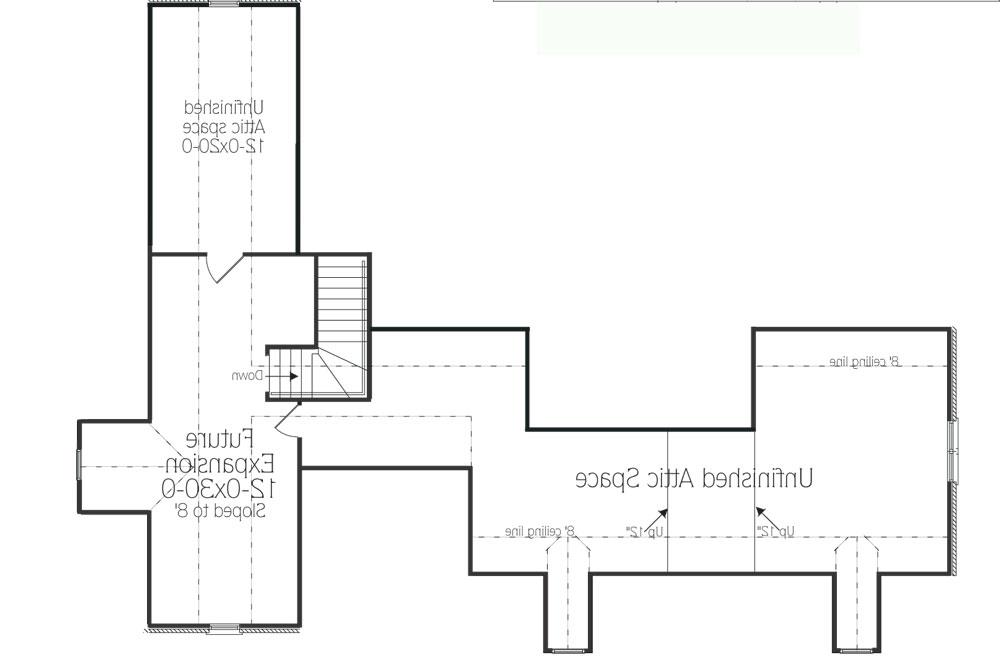

Second Floor Plan:
Second Floor Plan
Similar plans: 0002, 0309, 9812, 0101
Add to Favorites
Purchase Plans
House Plan Pricing
$1,260.00
$1,455.00
$1,630.00
$2,215.00
Foundation Options
$0.00
$350.00
$350.00
Additional Plan Options
$255.00
$295.00
Plan Details
General House Information
1
Number of Stories:
76' 10"
Width:
55' 6"
Depth:
Single
Dwelling Number:
Exterior Style
Old House Classics
Cape Cod
Country
Southern
Traditional
Facade
Brick
Stucco
Number of Rooms
3
Bedrooms:
2
Full Baths:
1
Half Baths:
Finished Square Footage
2,286 Sq. Ft.
Main Level:
2,286 Sq. Ft.
Total:
Unfinished Square Footage
632 Sq. Ft.
Garage:
580 Sq. Ft.
Porch:
443 Sq. Ft.
Bonus Room:
GARAGE
Front
Garage Location:
2
Garage Size:
Foundation
Basement
Crawl Space
Slab
House And Ceiling Heights
9 & 10
First Floor Ceiling:
8
Second Floor Ceiling:
25' 0"
Maximum House Height:
Framing Information
Stick
Roof Framing:
2x4
Exterior Wall Framing:
Roof Pitch
9/12
Primary:
10/12
Secondary:
12/12
Gable:
Roof Load
30
Live:
15
Dead:
Insulation (R)
Per IRC Climate Zones
Number of Rooms
3
Bedrooms:
2
Full Baths:
1
Half Baths:
Key Features
• Attached
• Basement
• Bonus Room
• Covered Front Porch
• Covered Rear Porch
• Crawlspace
• Dining Room
• Double Vanity Sink
• Fireplace
• Foyer
• Front Porch
• Great Room
• His and Hers Master Closets
• Laundry 1st Fl
• Master Bdrm Main Floor
• Nook / Breakfast Area
• Open Floor Plan
• Peninsula / Eating Bar
• Rear Porch
• Separate Tub and Shower
• Side-entry
• Slab
• Split Bedrooms
• Storage Space
• Suited for corner lot
• Suited for view lot
• Unfinished Space
• Vaulted Ceilings
• Walk-in Closet
