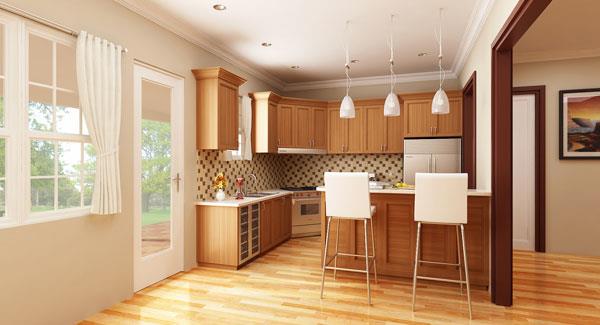

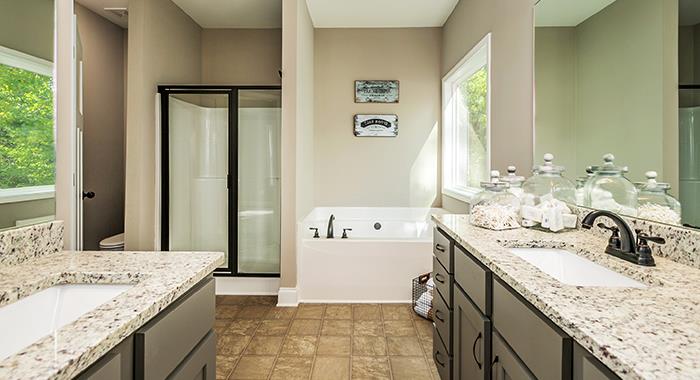

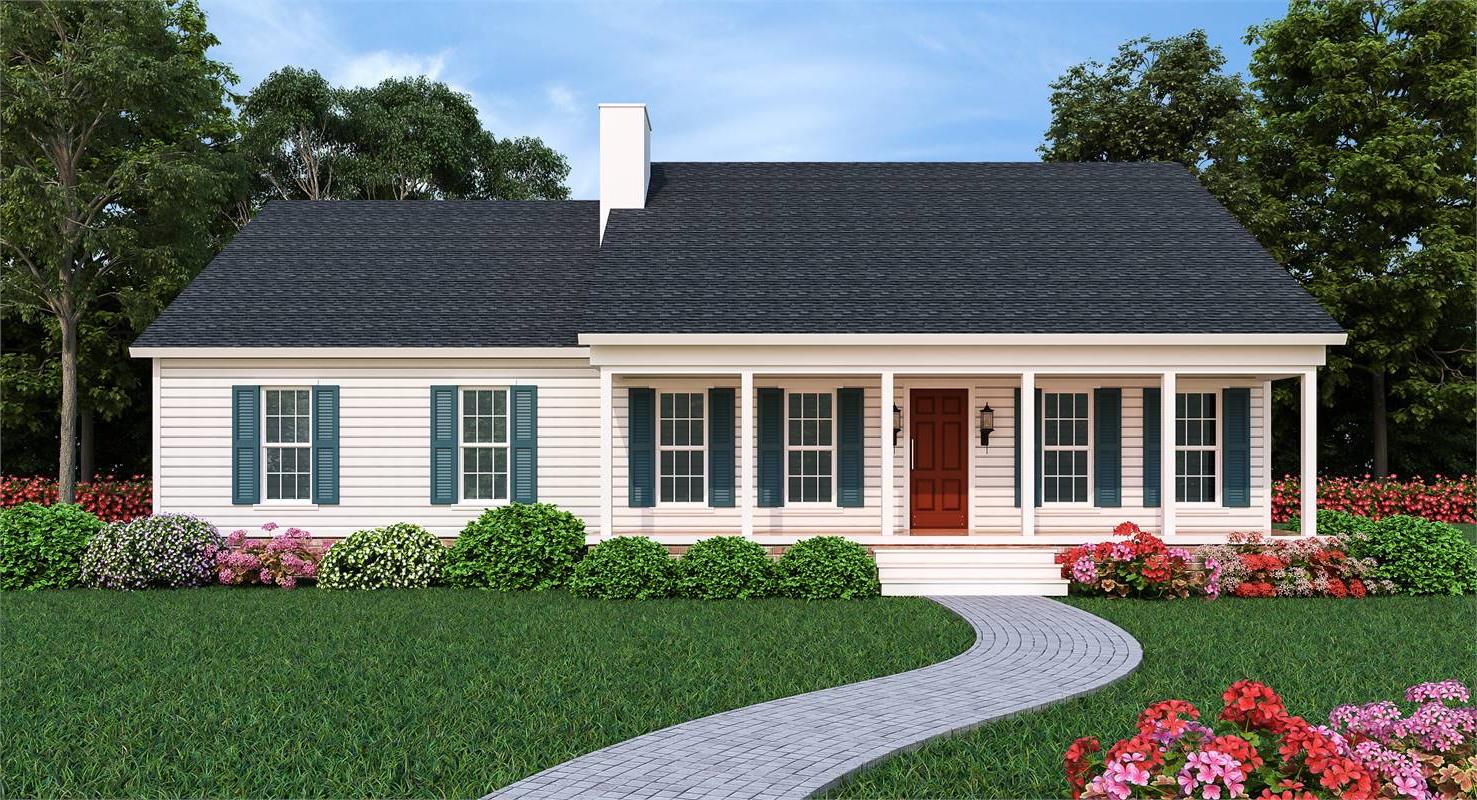

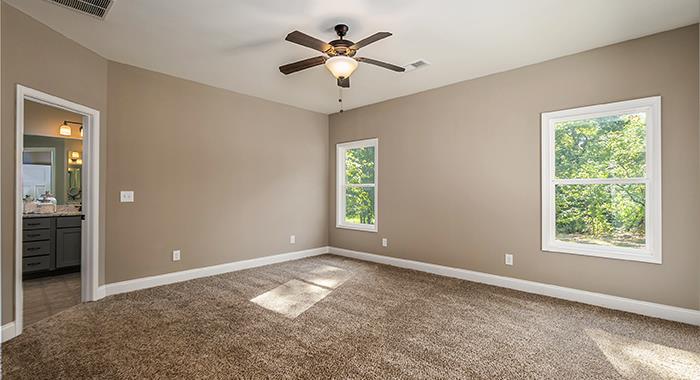

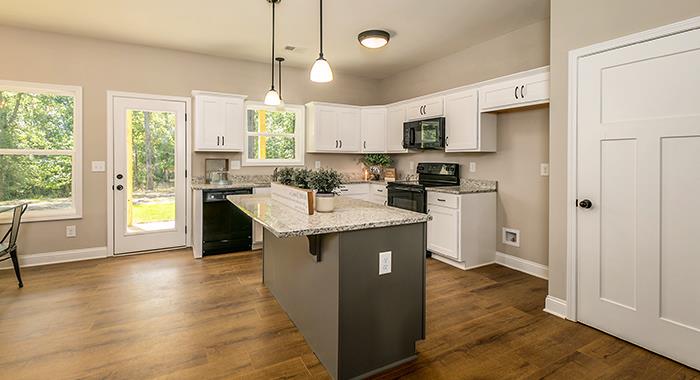

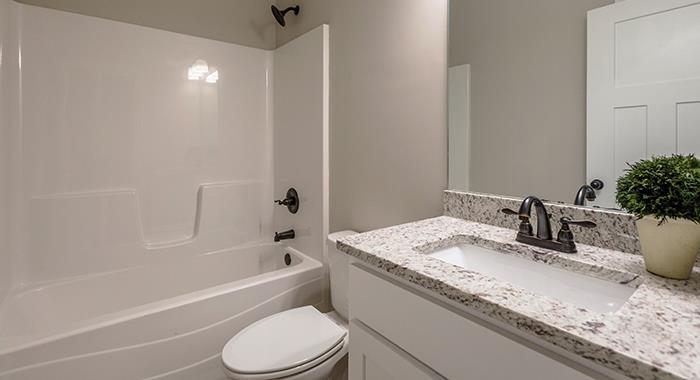

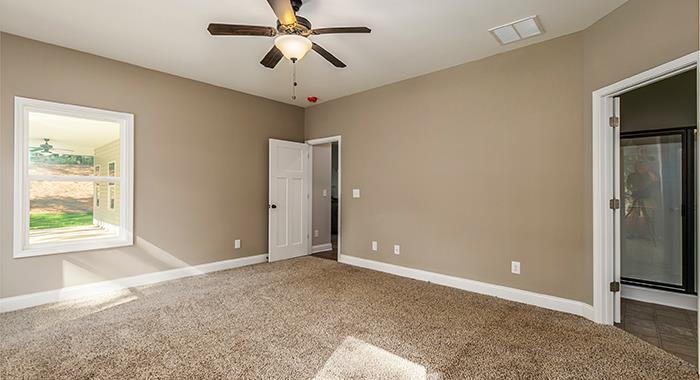

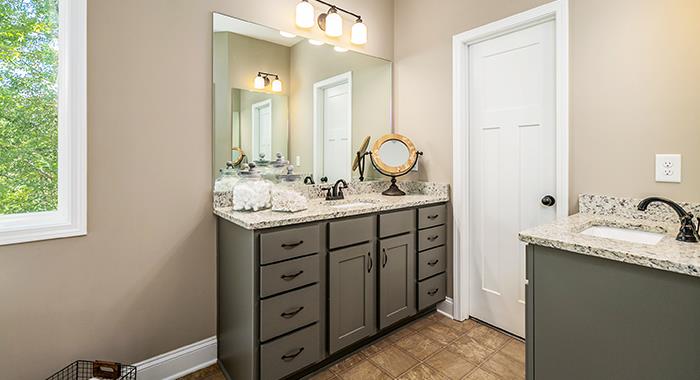

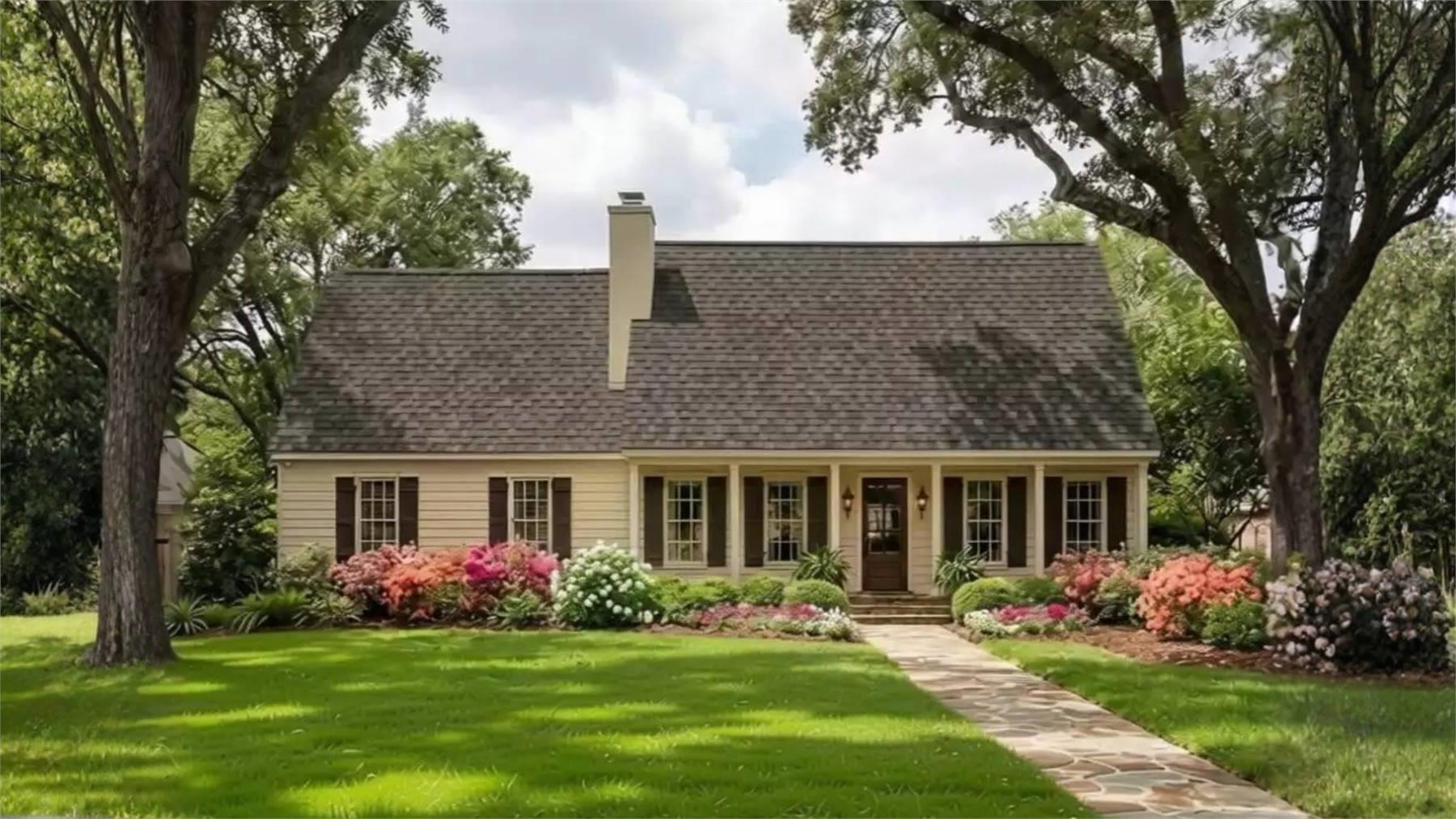

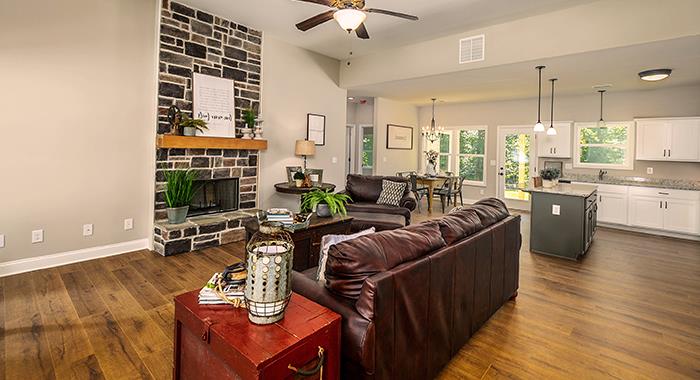

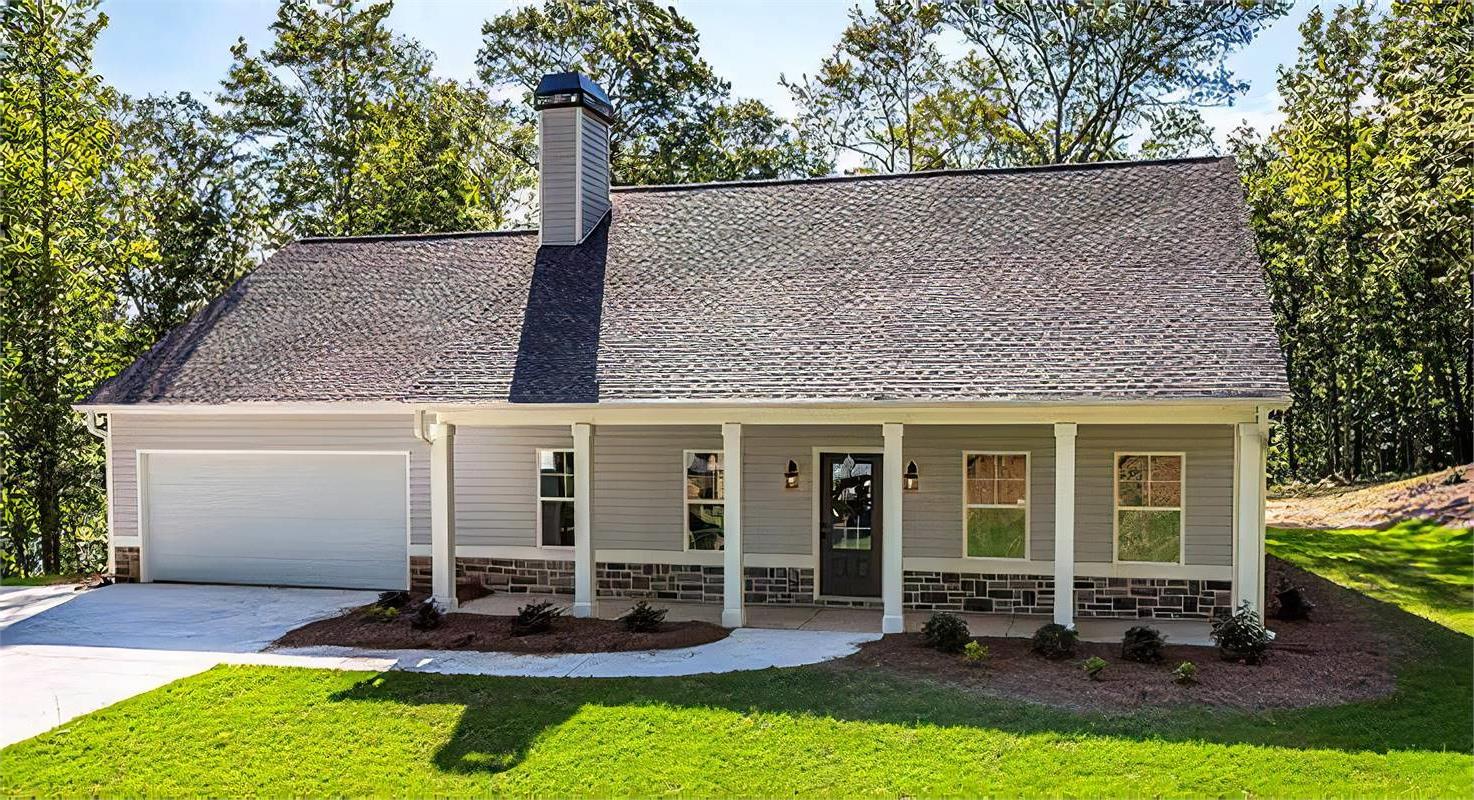

Lovely Front Rendering with Columned Front Porch Beautiful Front Photo View Open and Bright Great Room Featuring Fireplace Wall Chef Inspired Kitchen with Large Island and Bright Finishess Chef Inspired Kitchen - Another View Serene Primary Bedroom Featuring Large Windows Peaceful Primary Bedroom - Another View Terrific Primary Ensuite Bath with Separate Tub and Shower Great Primary Ensuite Bathroom - Another View Lovely Secondary Bathroom 3D Floor Plan Floor Plan
See all 12 photos and rear view
Photographs may reflect modified homes
© copyright by designer

Plan: 0314 Rendon

Plan Specification
Total Square Footage: 1,492
Main Level: 1,492
Bedrooms: 3
Baths: 2 Half: 0
Garages: 2
Width/Depth: 56 ft / 45 ft
Foundation: Basement Option, Crawl Space, Crawl Space Option, Slab
View typical construction drawing >
© copyright by designer

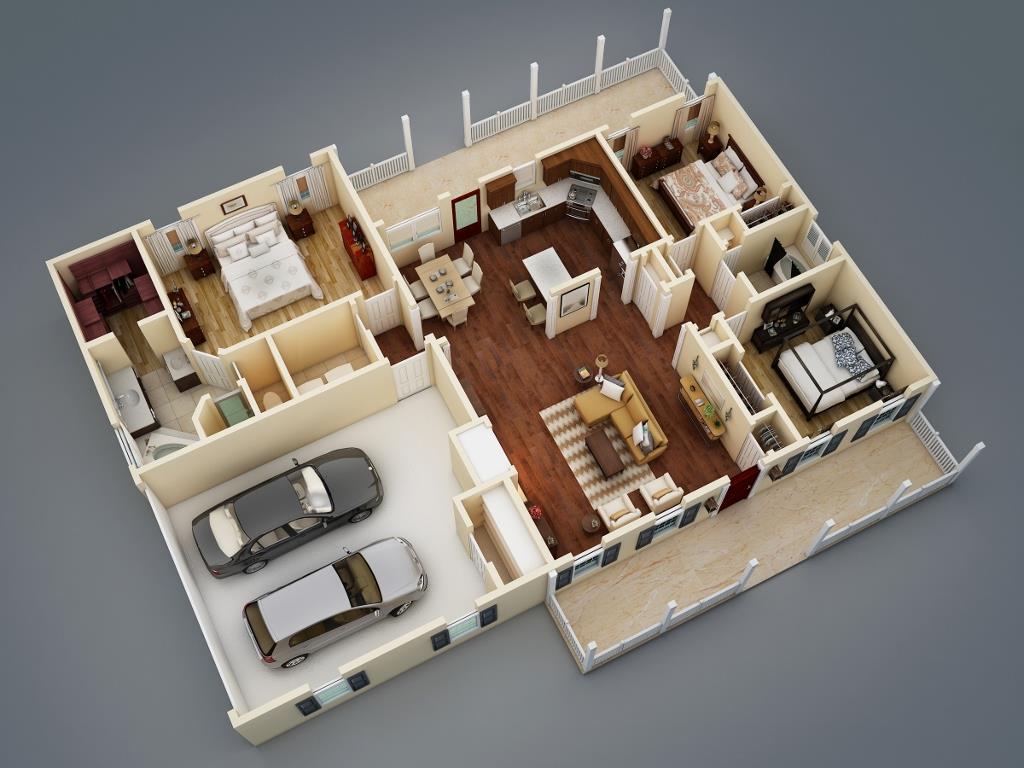

3D Floor Plan:
3D Floor Plan
© copyright by designer
Floor Plan:
Floor Plan
Similar plans: 1814, 1730, 1983, 1966
Add to Favorites
Purchase Plans
House Plan Pricing
$1,260.00
$1,605.00
$1,780.00
$2,165.00
Foundation Options
$0.00
$350.00
$350.00
$350.00
Additional Plan Options
$300.00
$325.00
Plan Details
General House Information
1
Number of Stories:
56' 0"
Width:
45' 8"
Depth:
Single
Dwelling Number:
1st Floor
Bonus Access:
Exterior Style
Budget
Builders
Cabin
North Carolina
Old House Classics
Rectangular
Classical
Colonial
Cottage
Country
Ranch
Southern
Traditional
Transitional
Facade
Siding
Number of Rooms
3
Bedrooms:
2
Full Baths:
Finished Square Footage
1,492 Sq. Ft.
Main Level:
1,492 Sq. Ft.
Total:
Unfinished Square Footage
431 Sq. Ft.
Garage:
30 Sq. Ft.
Storage:
GARAGE
Front
Garage Location:
2
Garage Size:
Foundation
Basement Option
Crawl Space
Crawl Space Option
Slab
House And Ceiling Heights
9 & 11
First Floor Ceiling:
22' 0"
Maximum House Height:
Framing Information
Stick
Roof Framing:
2x4
Exterior Wall Framing:
Roof Pitch
7/12
Primary:
4/12
Porch:
Roof Load
30
Live:
15
Dead:
Insulation (R)
Per IRC Climate Zones
Number of Rooms
3
Bedrooms:
2
Full Baths:
Key Features
• Attached
• Basement
• Country Kitchen
• Covered Front Porch
• Covered Rear Porch
• Crawlspace
• Double Vanity Sink
• Fireplace
• Great Room
• Kitchen Island
• Laundry 1st Fl
• L-Shaped
• Master Bdrm Main Floor
• Nook / Breakfast Area
• Open Floor Plan
• Pantry
• Peninsula / Eating Bar
• Separate Tub and Shower
• Side-entry
• Slab
• Split Bedrooms
• Storage Space
• Suited for corner lot
• Suited for view lot
• Walk-in Closet
