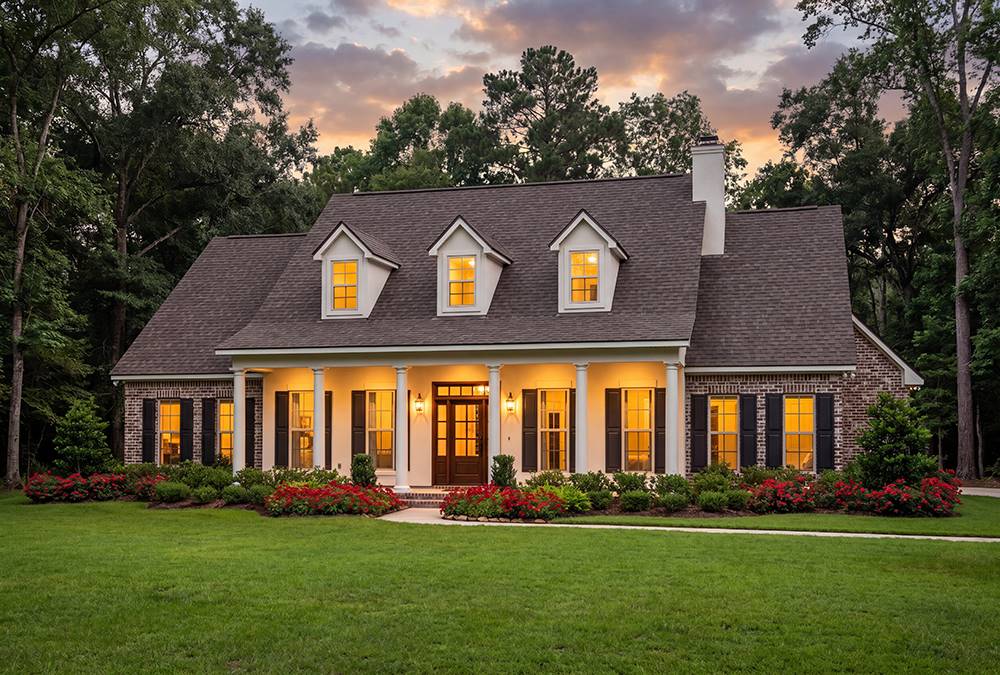

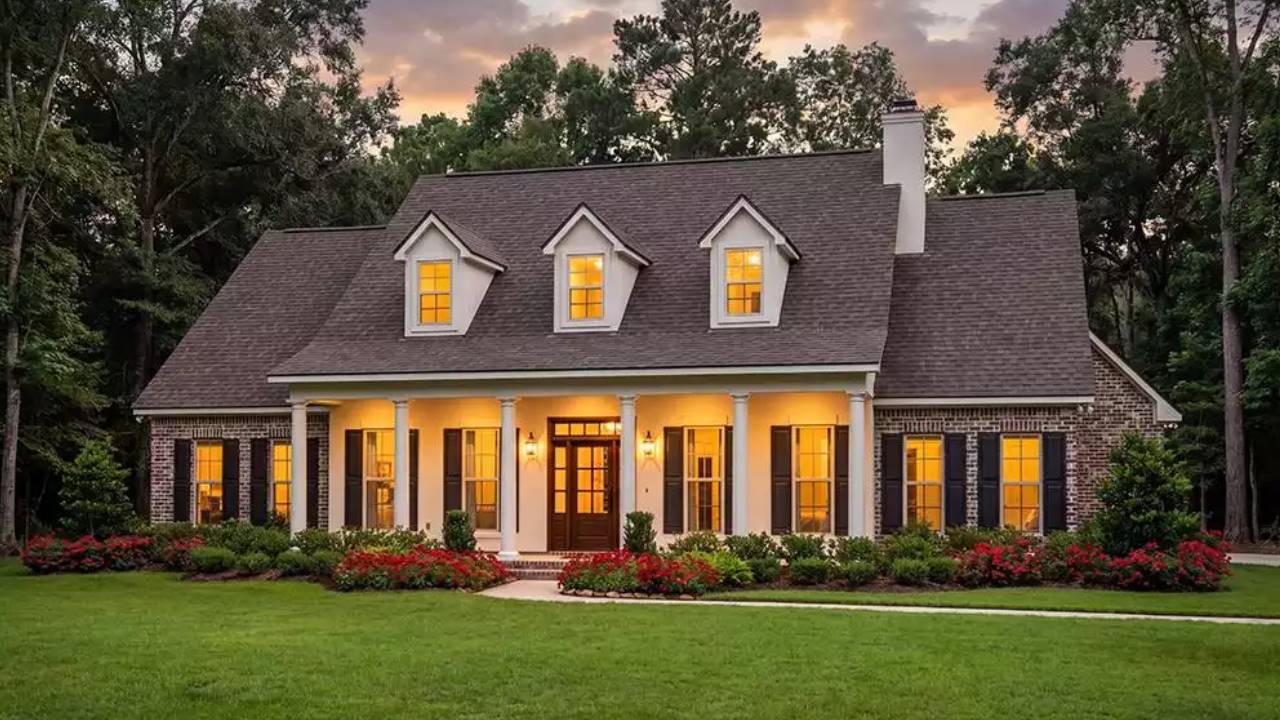

See all 5 photos and rear view
Photographs may reflect modified homes
© copyright by designer
Plan: 0004 Chardonne
Plan Specification
Total Square Footage:
2,122
Main Level:
2,122
Bonus:
965
Bedrooms:
3
Baths:
2 Half: 1
Garages:
2
Width/Depth:
69 ft / 67 ft
Foundation:
Basement, Crawl Space, Slab
View typical construction drawing >
© copyright by designer
First Floor Plan:
© copyright by designer
Second Floor Plan:
© copyright by designer
Optional Floor Plan:
Similar plans:
9513
,
9298
,
9907
,
90019
Add to Favorites
Purchase Plans
House Plan Pricing
Single Build PDF - Most recommended package
$1,260.00
Five printed sets
$1,455.00
Digital Plans plus 5 printed sets
$1,630.00
2D electronic editable computer files
$2,215.00
More details about our plan packages
Foundation Options
Slab
$0.00
Basement
$350.00
Crawl Space
$350.00
Additional Plan Options
Reverses house plan (Text and Dimensions are readable)
$255.00
2x6 Exterior Wall Conversion
$295.00
Plan Details
General House Information
1
Number of Stories:
69' 0"
Width:
67' 10"
Depth:
Single
Dwelling Number:
2nd Floor
Bonus Access:
Exterior Style
Florida
Mountain
Old House Classics
Vacation
Country
Farmhouse
Southern
Traditional
Facade
Brick
Stucco
Number of Rooms
3
Bedrooms:
2
Full Baths:
1
Half Baths:
Finished Square Footage
2,122 Sq. Ft.
Main Level:
2,122 Sq. Ft.
Total:
Unfinished Square Footage
570 Sq. Ft.
Garage:
429 Sq. Ft.
Porch:
965 Sq. Ft.
Bonus Room:
GARAGE
Rear
Garage Location:
2
Garage Size:
Foundation
Basement
Crawl Space
Slab
House And Ceiling Heights
9
First Floor Ceiling:
28' 0"
Maximum House Height:
Framing Information
Stick
Roof Framing:
2x4
Exterior Wall Framing:
Roof Pitch
10/12
Primary:
12/12
Dormer:
4/12
Porch:
Roof Load
30
Live:
15
Dead:
Insulation (R)
Per IRC Climate Zones
Number of Rooms
3
Bedrooms:
2
Full Baths:
1
Half Baths:
Key Features
• Attached
• Basement
• Bonus Room
• Covered Front Porch
• Covered Rear Porch
• Crawlspace
• Dining Room
• Double Vanity Sink
• Fireplace
• Foyer
• Front Porch
• Great Room
• His and Hers Master Closets
• Home Office
• Laundry 1st Fl
• Master Bdrm Main Floor
• Nook / Breakfast Area
• Open Floor Plan
• Peninsula / Eating Bar
• Rear Porch
• Separate Tub and Shower
• Side-entry
• Slab
• Split Bedrooms
• Storage Space
• Suited for corner lot
• Suited for view lot
• Unfinished Space
• Walk-in Closet
• Walk-in Pantry
Plan: 0004, 1 story, 2,122 total square footage
