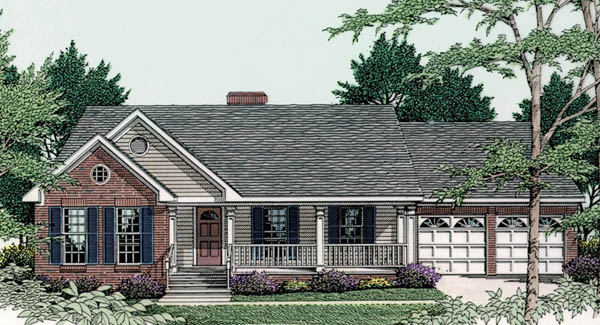

You have selected The Auburn: 9609

View Plan Details

Stories: 1
Total Square Footage: 1,606
First Floor: 1,606
Bedrooms: 3
Full Baths: 2
Width: 62 ft. 11 in.
Depth: 52 ft.
Foundation:
Basement, Crawl Space, Slab

For questions or to order by phone, call 1-800-742-6672

Available Plan Packages

	Plan Packages: Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, structural information, cross sections, roof plans, cabinet layouts and elevations, as well as general specifications. They contain virtually all of the information required to construct your home.



	$1,260.00	Single Build PDF - Most recommended package
	Best Value and fast delivery! PDF plan sets are the quickest delivery option. A PDF Construction Set is a single build digital construction plan package, allowing you to make hard copies of any size (full size or reduced size for field copies). PDF files can also be emailed to your sub-contractors for bidding purposes. Completion of an online license indicating location of the new build to be done during checkout.



	$1,605.00	Five printed sets
	This is the minimum construction package. (Single-use)



	$1,780.00	Digital Plans plus 5 printed sets



	$2,165.00	2D electronic editable computer files
	CAD files are the best option when hiring a design professional or engineer to make substantial changes. Modified sets of the plan can then be printed for the construction of a single home. The CAD file will originate from one of the following architectural programs - SoftPlan, DataCAD or Chief Architect. Files are exported in dwg format. A signed license agreement is required prior to CAD files being delivered by email. ALL CAD SALES ARE FINAL.


	Plan Foundations



	$0.00	Slab
	This foundation requires a level building pad. It consists of 4" thick poured concrete with interior footings placed under load bearing walls. A slab foundation can be built at normal grade or to give the home a raised look use reinforced concrete blocks with compacted fill dirt then the standard 4" poured concrete. The majority of our designs include details for this type of slab construction.



	$350.00	Basement
	A below grade (full in-ground) unfinished basement foundation constructed with 8" or 12" reinforced concreate block walls with a 4" poured concrete slab as the basement floor. Pipe columns support the beams and are placed under load bearing walls. The basement square footage is typically the same as the main floor.



	$350.00	Crawl Space
	An above grade foundation with block and masonry on the exterior with wood beams and concrete block for interior support completed by wood floor joists. This foundation does not require a level building site.


	Plan Options



	$300.00	Reverses house plan (Text and Dimensions are readable)
	Full reverse plans are redrawn with all the plans and elevations fully reversed with all lettering and text read correctly instead of mirrored.

Complete order online today and pay with your credit card using our secure checkout process.

Print your order form and send your payment directly to Larry James Designs. Allow popups in order to print this form.

Print Out Order Form

To order by phone, call our customer service team at the number below.

1-800-742-6672
