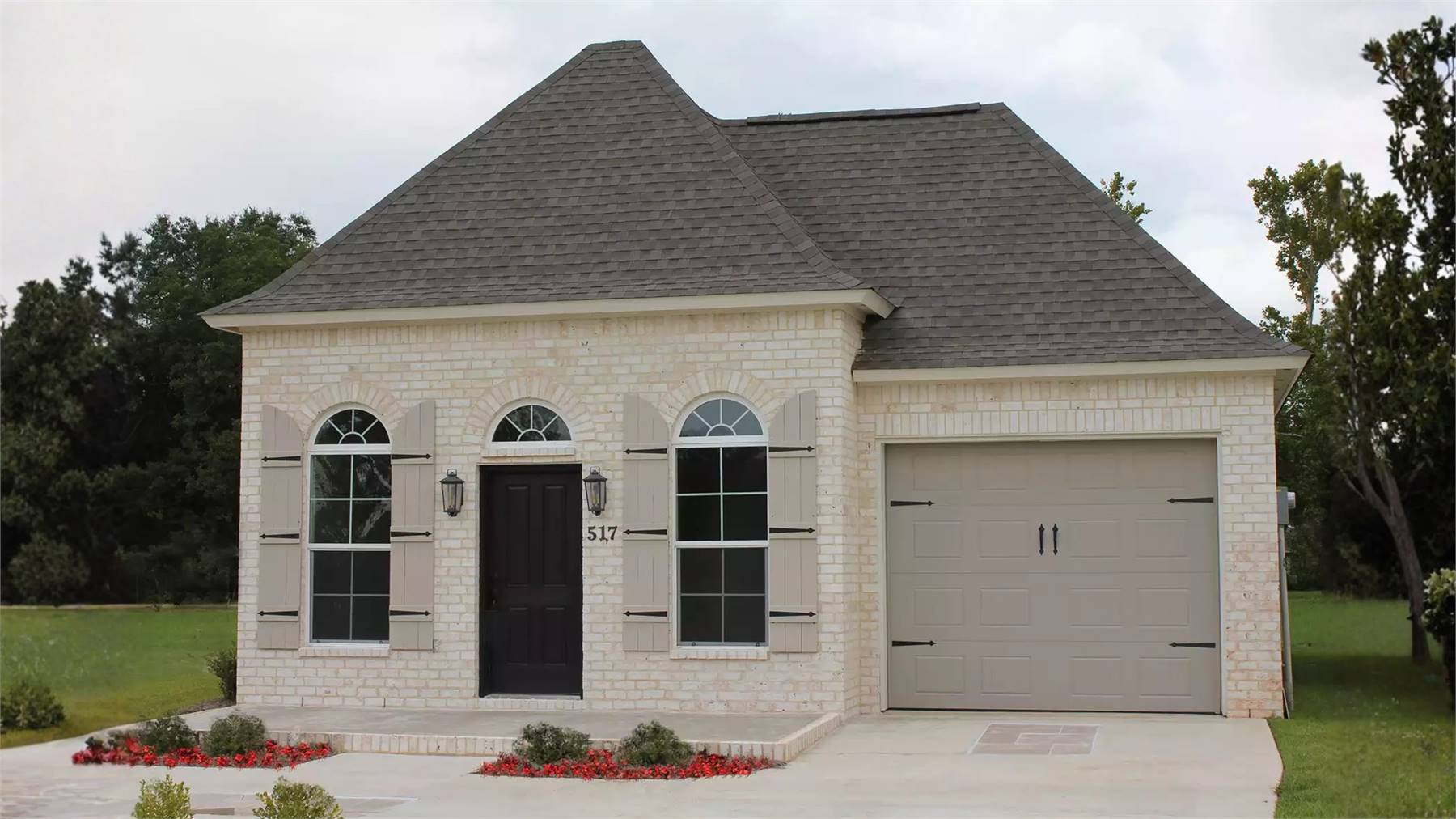

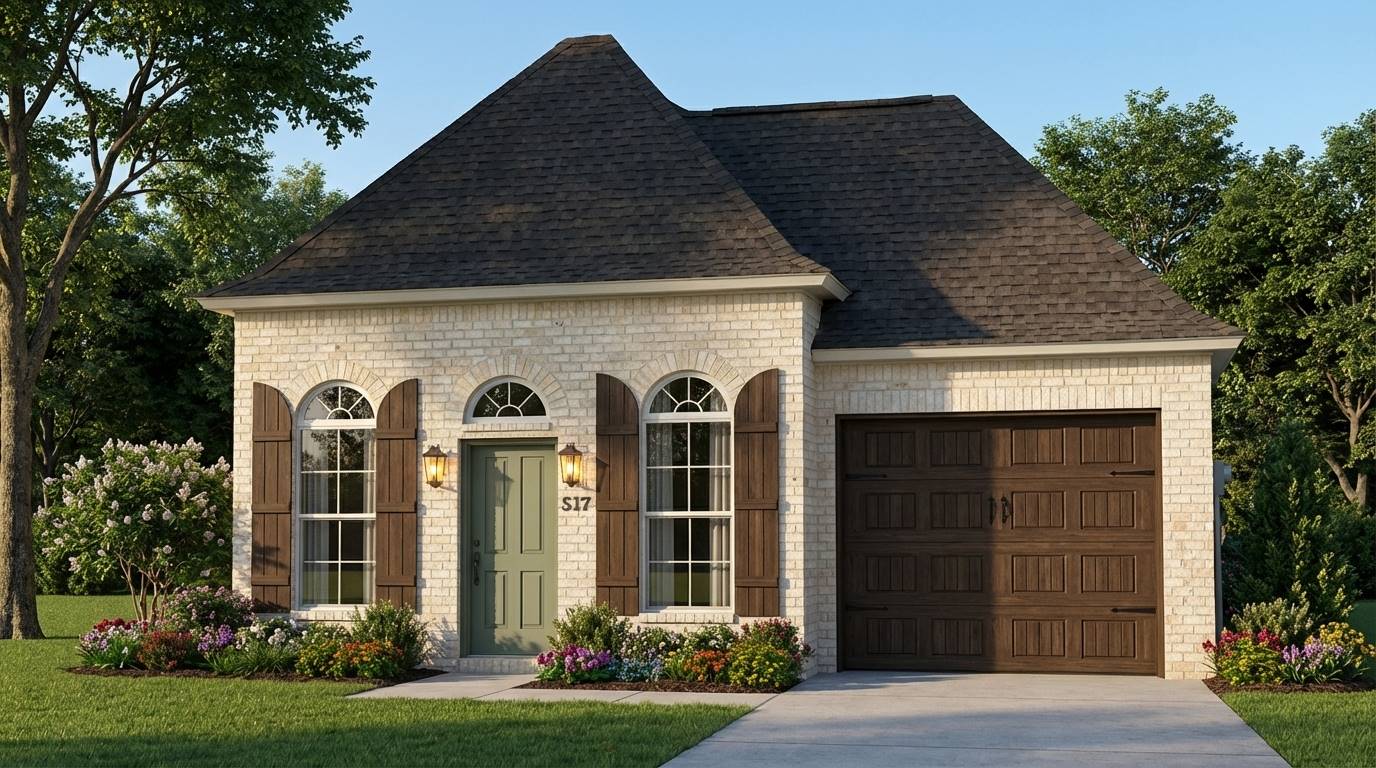

You have selected The Little Chateau: 1590

© copyright by designer
View Plan Details
Stories: 1
Total Square Footage: 1,170
First Floor: 1,170
Bedrooms: 2
Full Baths: 2
Width: 30 ft.
Depth: 50 ft. 6 in.
Foundation:
Crawl Space Option, Slab
For questions or to order by phone, call 1-800-742-6672

Available Plan Packages

Plan Packages: Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, structural information, cross sections, roof plans, cabinet layouts and elevations, as well as general specifications. They contain virtually all of the information required to construct your home.

$1,060.00   Single Build PDF - Most recommended package
Best Value and fast delivery! PDF plan sets are the quickest delivery option. A PDF Construction Set is a single build digital construction plan package, allowing you to make hard copies of any size (full size or reduced size for field copies). PDF files can also be emailed to your sub-contractors for bidding purposes. Completion of an online license indicating location of the new build to be done during checkout.

$1,260.00   Five printed sets
This is the minimum construction package. (Single-use)

$1,435.00   Digital Plans plus 5 printed sets

$1,965.00   2D electronic editable computer files
CAD files are the best option when hiring a design professional or engineer to make substantial changes. Modified sets of the plan can then be printed for the construction of a single home. The CAD file will originate from one of the following architectural programs - SoftPlan, DataCAD or Chief Architect. Files are exported in dwg format. A signed license agreement is required prior to CAD files being delivered by email. ALL CAD SALES ARE FINAL.
Plan Foundations

$0.00Slab
This foundation requires a level building pad. It consists of 4" thick poured concrete with interior footings placed under load bearing walls. A slab foundation can be built at normal grade or to give the home a raised look use reinforced concrete blocks with compacted fill dirt then the standard 4" poured concrete. The majority of our designs include details for this type of slab construction.

$350.00Crawl Space Option
An above grade foundation with block and masonry on the exterior with wood beams and concrete block for interior support completed by wood floor joists. The foundation does not require a level building site.
Plan Options

$295.002x6 Exterior Wall Conversion
Modify plan from 2x4 to 2x6 wall construction. This change will result in a more energy efficient home. NOTE: The 2" will be taken to the inside with this conversion. If an alternate option is preferred, a consultation with the modification group will be required. Please contact us at 1-866-214-2242 Shipping can be delayed approximately 3-4 days with this option. Materials list purchases (if available) with this option will not reflect the 2x6 conversion.

Complete order online today and pay with your credit card using our secure checkout process.

Print your order form and send your payment directly to Larry James Designs. Allow popups in order to print this form.

Print Out Order Form

To order by phone, call our customer service team at the number below.

1-800-742-6672
